Question: CEE 3 2 1 Homework 4 : Complex Beams Problem 1 : Draw the shear and moment diagrams for the beam below. Draw the free

CEE

321

Homework

4

: Complex Beams

Problem

1

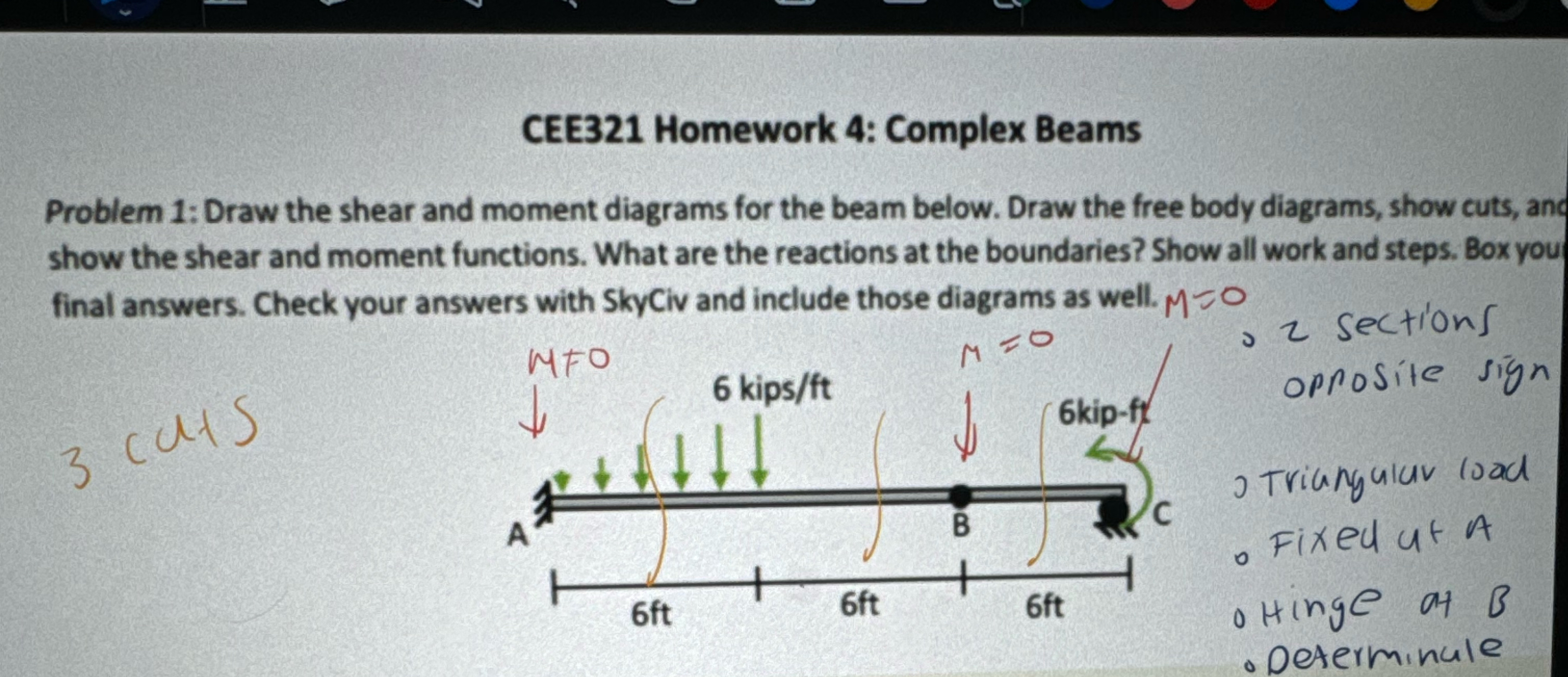

: Draw the shear and moment diagrams for the beam below. Draw the free body diagrams, show cuts, ang show the shear and moment functions. What are the reactions at the boundaries? Show all work and steps. Box you final answers. Check your answers with SkyCiv and include those diagrams as well.

sections oprosite sign

o Triangular load

Fixed ut

A

o Hinge at

B

Determinale

CEE 3 2 1 Homework 4 : Complex Beams Problem 1 :

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
