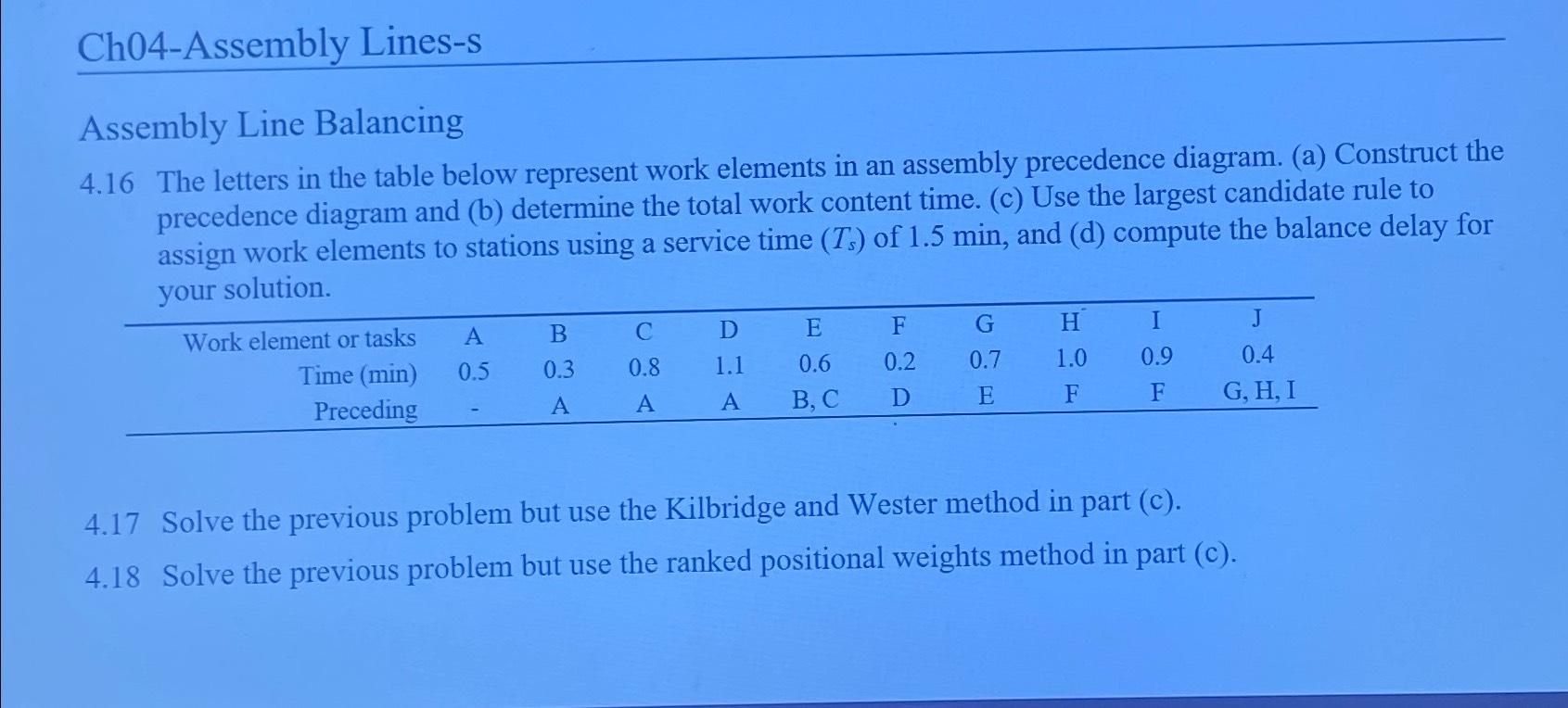

Ch$04-$Assembly Lines$-$s

Assembly Line Balancing

$4\mathrm{.}16$ The letters in the table below represent work elements in an assembly precedence diagram. $($a$)$ Construct the precedence diagram and $($b$)$ determine the total work content time. $($c$)$ Use the largest candidate rule to assign work elements to stations using a service time $(T_s)$ of $1\mathrm{.}5$min, and $($d$)$ compute the balance delay for your solution.

$\backslash$table$[[$Work element or tasks,A$,$B$,$C$,$D$,$E$,$F$,$G$,$H$,$I,J$],[$Time $($min$),0\mathrm{.}5,0\mathrm{.}3,0\mathrm{.}8,1\mathrm{.}1,0\mathrm{.}6,0\mathrm{.}2,0\mathrm{.}7,1\mathrm{.}0,0\mathrm{.}9,0\mathrm{.}4],[$Preceding$,-,$A$,$A$,$A$,$B$,$ C$,$D$,$E$,$F$,$F$,$G$,$ H$,$ I$]]$

$4\mathrm{.}17$ Solve the previous problem but use the Kilbridge and Wester method in part $($c$).$

$4\mathrm{.}18$ Solve the previous problem but use the ranked positional weights method in part $($c$).$
