Required information

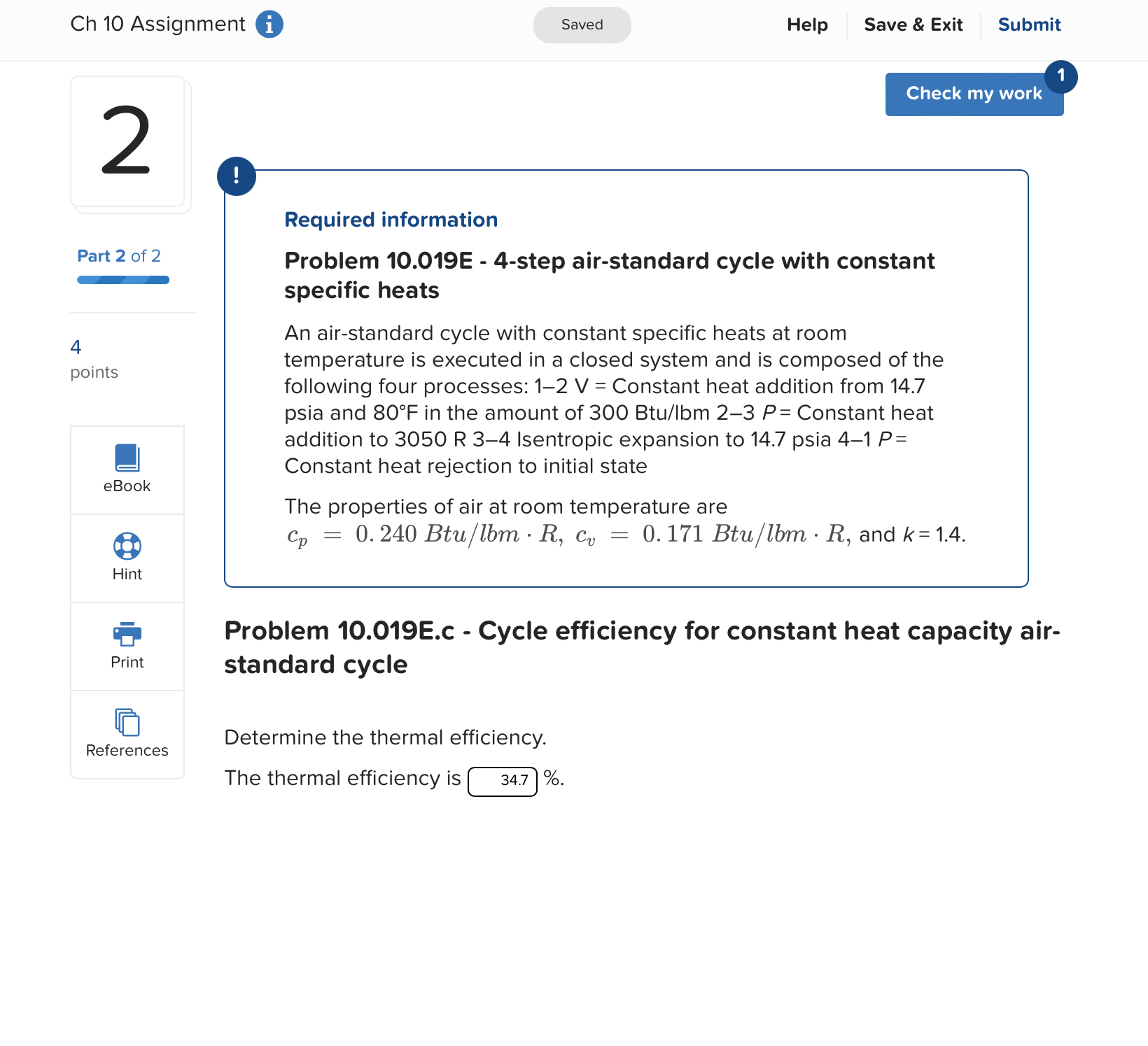

Problem $10\mathrm{.}019$E $-4-$step air$-$standard cycle with constant specific heats

An air$-$standard cycle with constant specific heats at room temperature is executed in a closed system and is composed of the following four processes: $1-2V=$ Constant heat addition from $14\mathrm{.}7$ psia and $80F$ in the amount of $300Bt\frac{u}{l}bm2-3P=$ Constant heat addition to $3050$ R $3-4$ Isentropic expansion to $14\mathrm{.}7$ psia $4-1P=$ Constant heat rejection to initial state

The properties of air at room temperature are

$c_p=0\mathrm{.}240Bt\frac{u}{l}bm*R,c_v=0\mathrm{.}171Bt\frac{u}{l}bm*R,$ and $k=1\mathrm{.}4.$

Problem $10\mathrm{.}019$E$.$c $-$ Cycle efficiency for constant heat capacity airstandard cycle

Determine the thermal efficiency.

The thermal efficiency is

$\%.$
