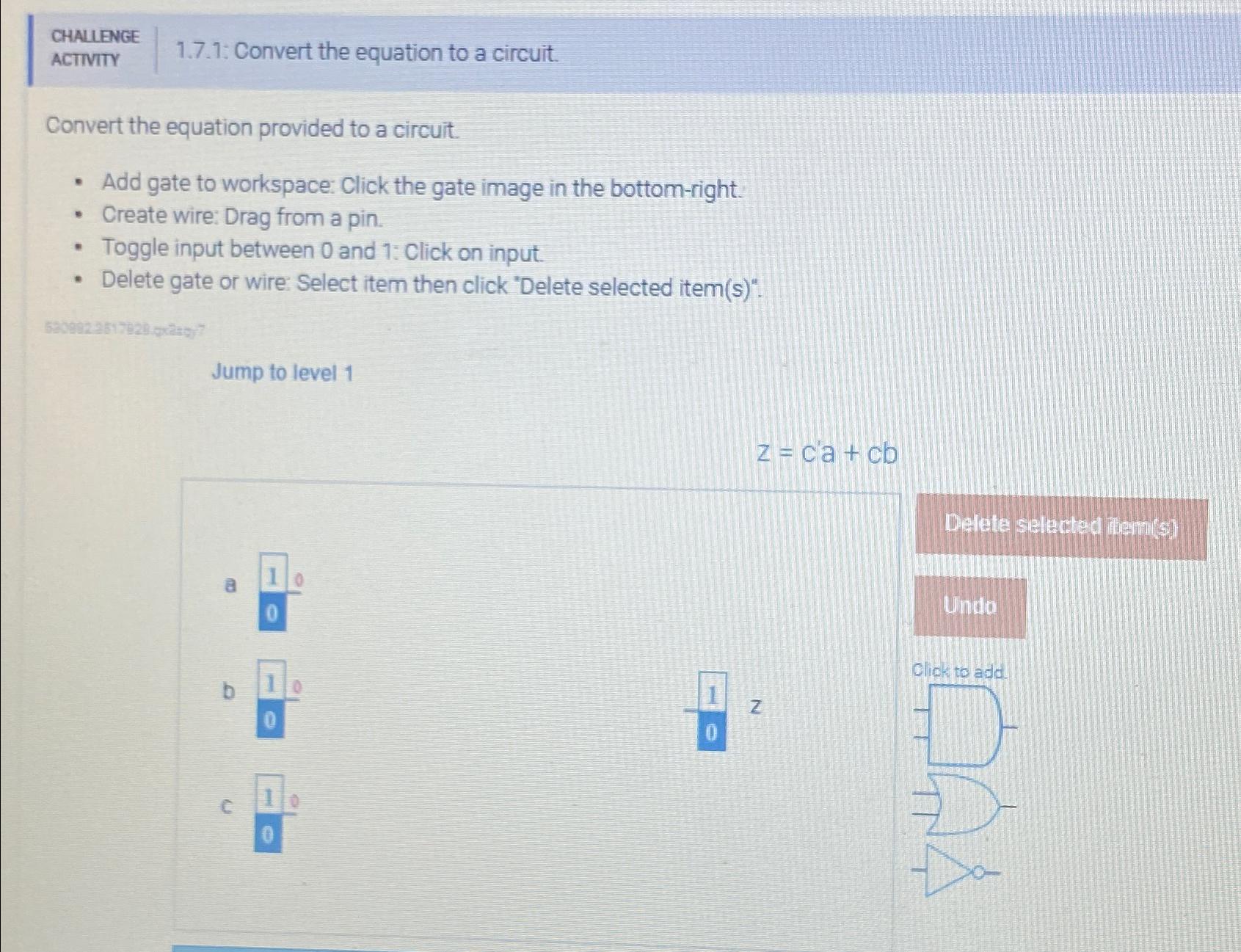

CHALLENGE

ACTIVITY

$1\mathrm{.}7\mathrm{.}1$: Convert the equation to a circuit.

Convert the equation provided to a circuit.

Add gate to workspace: Click the gate image in the bottom$-$right.

Create wire: Drag from a pin.

Toggle input between $0$ and $1$: Click on input.

Delete gate or wire: Select item then click "Delete selected item$($s$)".$

Jump to level $1$

$z=c^{\text{'}}a+cb$

a $\frac{1}{0}$

b $\frac{1}{0}$

$\frac{1}{0}z$

Click to add.

c $\frac{1}{0}$

Undo
