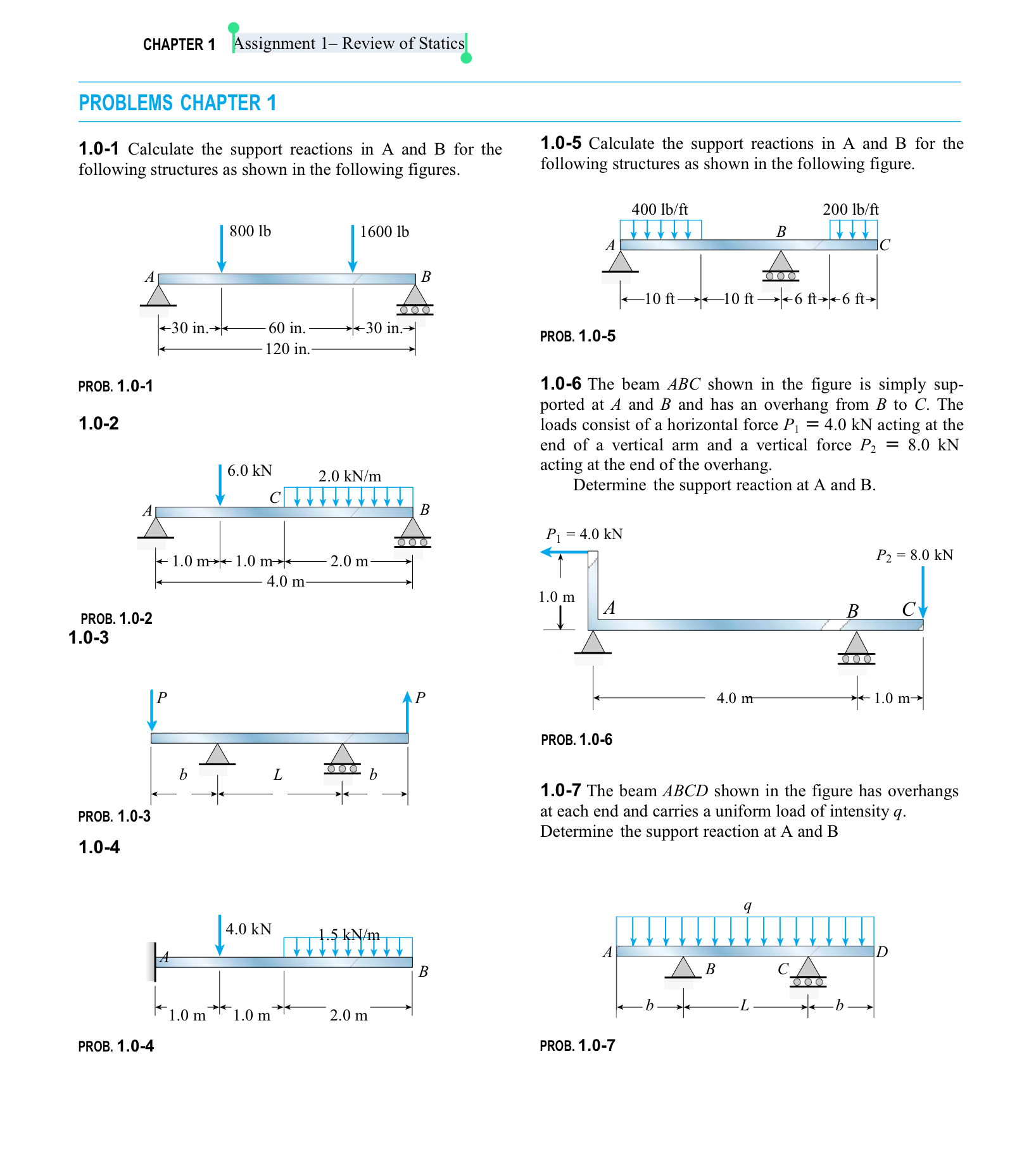

CHAPTER $1$ Assignment $1-$Review of Statics

PROBLEMS CHAPTER $1$

$1\mathrm{.}0-1$ Calculate the support reactions in A and B for the following structures as shown in the following figures.

$1\mathrm{.}0-5$ Calculate the support reactions in A and B for the following structures as shown in the following figure.

PROB. $1\mathrm{.}0-5$

PROB. $1\mathrm{.}0-11\mathrm{.}0-2$

PROB. $1\mathrm{.}0-21\mathrm{.}0-3$

PF $1\mathrm{.}0-4$

$1\mathrm{.}0-6$ The beam ABC shown in the figure is simply sup$-$ ported at A and $B$ and has an overhang from $B$ to $C.$ The loads consist of a horizontal force $P_1=4\mathrm{.}0kN$ acting at the end of a vertical arm and a vertical force $P_2=8\mathrm{.}0kN$ acting at the end of the overhang.

Determine the support reaction at A and B $.$

$1\mathrm{.}0-7$ The beam ABCD shown in the figure has overhangs

at each end and carries a uniform load of intensity $q.$ Determine the support reaction at A and B

P

PRL
