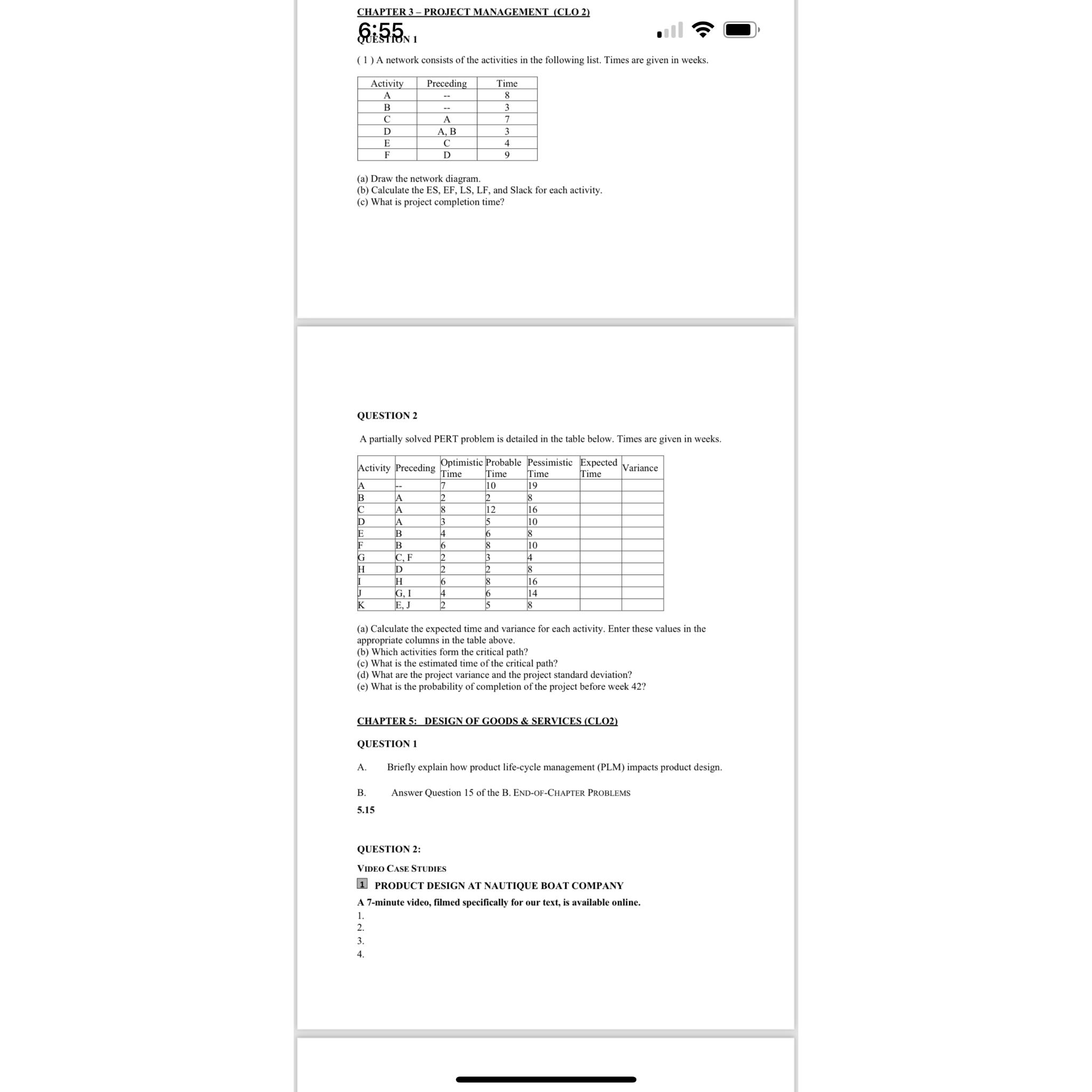

CHAPTER $3-$ PROJECT MANAGEMENT $($CLO $2)$

$6$:$5$:$5.K_{N1}$

$(1)$ A network consists of the activities in the following list. Times are given in weeks.

$\backslash$table$[[$Activity$,$Preceding,Time$],[$A$,--,8],[$B$,--,3],[$C$,$A$,7],[$D$,$A$,$ B$,3],[$E$,$C$,4],[$F$,$D$,9]]$

$($a$)$ Draw the network diagram.

$($b$)$ Calculate the ES$,$ EF$,$ LS$,$ LF$,$ and Slack for each activity.

$($c$)$ What is project completion time?

QUESTION $2$

A partially solved PERT problem is detailed in the table below. Times are given in weeks.

$\backslash$table$[[$Activity$,$Preceding,$\backslash$table$[[$Optimistic$],[$Time$]],\backslash$table$[[$Probable$],[$Time$]],\backslash$table$[[$Pessimistic$],[$Time$]],\backslash$table$[[$Expected$],[$Time$]],$Variance$],[A,-,7,10,19,,],[$B$,$A$,2,2,8,,],[C,$A$,8,12,16,,],[$D$,$A$,3,5,10,,],[E,$B$,4,6,8,,],[F,$B$,6,8,10,,],[G,C,F,2,3,4,,],[H,$D$,2,2,8,,],[$I$,H,6,8,16,,],[J,G,$I,$4,6,14,,],[K,E,J,2,5,8,,]]$

$($a$)$ Calculate the expected time and variance for each activity. Enter these values in the appropriate columns in the table above.

$($b$)$ Which activities form the critical path?

$($c$)$ What is the estimated time of the critical path?

$($d$)$ What are the project variance and the project standard deviation?

$($e$)$ What is the probability of completion of the project before week $42?$

CHAPTER $5$: DESIGN OF GOODS & SERVICES $($CLO$2)$

QUESTION $1$

A$.$ Briefly explain how product life$-$cycle management $($PLM$)$ impacts product design.

B$.$ Answer Question $15$ of the B$.$ END$-$OF$-$CHAPTER ProbLEMS

$5\mathrm{.}15$

QUESTION $2$:

Video CASE STUdies

$1$ PRODUCT DESIGN AT NAUTIQUE BOAT COMPANY

A $7-$minute video, filmed specifically for our text, is available online.

$1.$

$2.$

$3.$

$4.$
