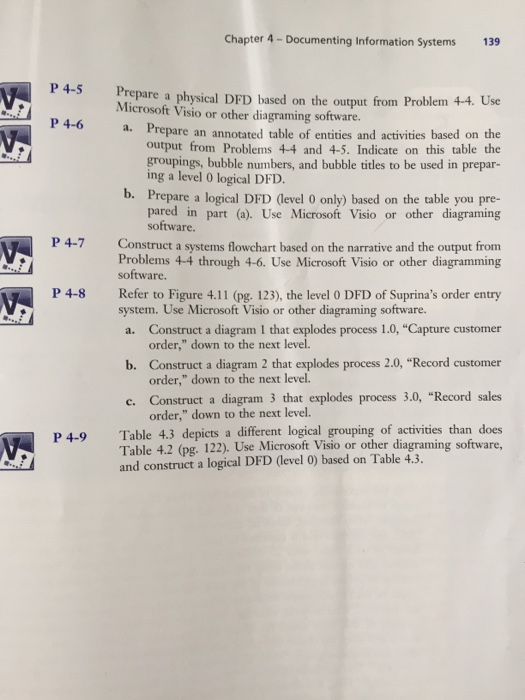

Chapter 4- Documenting Information systems 139 P 4-5 Prepare a physical DFD based on the output from Problem 4-4. Use Microsoft Visio or other diagraming software. P 4-6 a. Prepare an annotated table of entities and activities based on the output from Problems 4-4 and 4-5. Indicate on this table the groupings, bubble numbers, and bubble titles to be used in prepar- ing a level 0 logical DFD b. Prepare a logical DFD (evel o only based on the table you pre- pared in part (a). Use Microsoft Visio or other diagraming software. P 4-7 Construct a systems flowchart based on the narrative and the output from Problems 4-4 through 4-6. Use Microsoft Visio or other diagramming software. P 4-8 Refer to Figure 4.11 (pg. 123, the level 0 DFD of Suprina's order entry system. Use Microsoft Visio or other diagraming software. a. Construct a diagram 1 that explodes process 1 "Capture customer order," down to the next level. b. Construct a diagram 2 that explodes process 2.0, "Record customer order," down to the next level. c. Construct a diagram 3 that explodes process 3.0, "Record sales order," down to the next level. P 4-9 Table 4.3 depicts a different logical grouping of activities than does Table 4.2 (pg. 122). Microsoft Visio or other diagraming software and construct a logical DFD (evel 0) based on Table Chapter 4- Documenting Information systems 139 P 4-5 Prepare a physical DFD based on the output from Problem 4-4. Use Microsoft Visio or other diagraming software. P 4-6 a. Prepare an annotated table of entities and activities based on the output from Problems 4-4 and 4-5. Indicate on this table the groupings, bubble numbers, and bubble titles to be used in prepar- ing a level 0 logical DFD b. Prepare a logical DFD (evel o only based on the table you pre- pared in part (a). Use Microsoft Visio or other diagraming software. P 4-7 Construct a systems flowchart based on the narrative and the output from Problems 4-4 through 4-6. Use Microsoft Visio or other diagramming software. P 4-8 Refer to Figure 4.11 (pg. 123, the level 0 DFD of Suprina's order entry system. Use Microsoft Visio or other diagraming software. a. Construct a diagram 1 that explodes process 1 "Capture customer order," down to the next level. b. Construct a diagram 2 that explodes process 2.0, "Record customer order," down to the next level. c. Construct a diagram 3 that explodes process 3.0, "Record sales order," down to the next level. P 4-9 Table 4.3 depicts a different logical grouping of activities than does Table 4.2 (pg. 122). Microsoft Visio or other diagraming software and construct a logical DFD (evel 0) based on Table
