Question: [ Chapter 7 - Dimensioning ] Name Date: q , P 7 - 8 ) The following object is dimensioned incorrectly. Identify the incorrect dimensions

[

Chapter

7 -

Dimensioning

]

Name

Date:

q,

7 - 8)

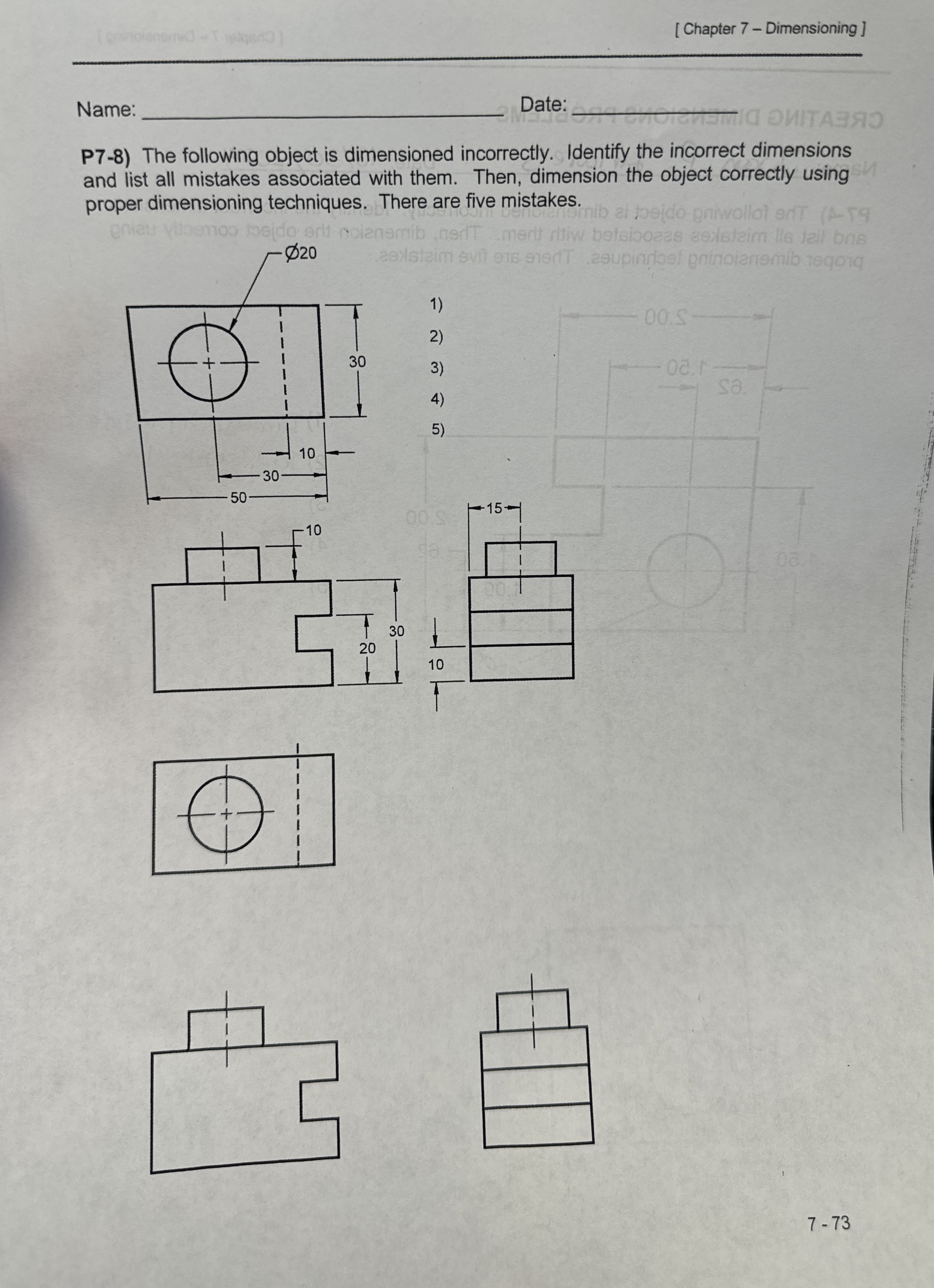

The following object is dimensioned incorrectly. Identify the incorrect dimensions and list all mistakes associated with them. Then, dimension the object correctly using proper dimensioning techniques. There are five mistakes.

7 - 73

[ Chapter 7 - Dimensioning ] Name Date: q , P 7 -

Step by Step Solution

There are 3 Steps involved in it
