ChE Fluids

Design Project

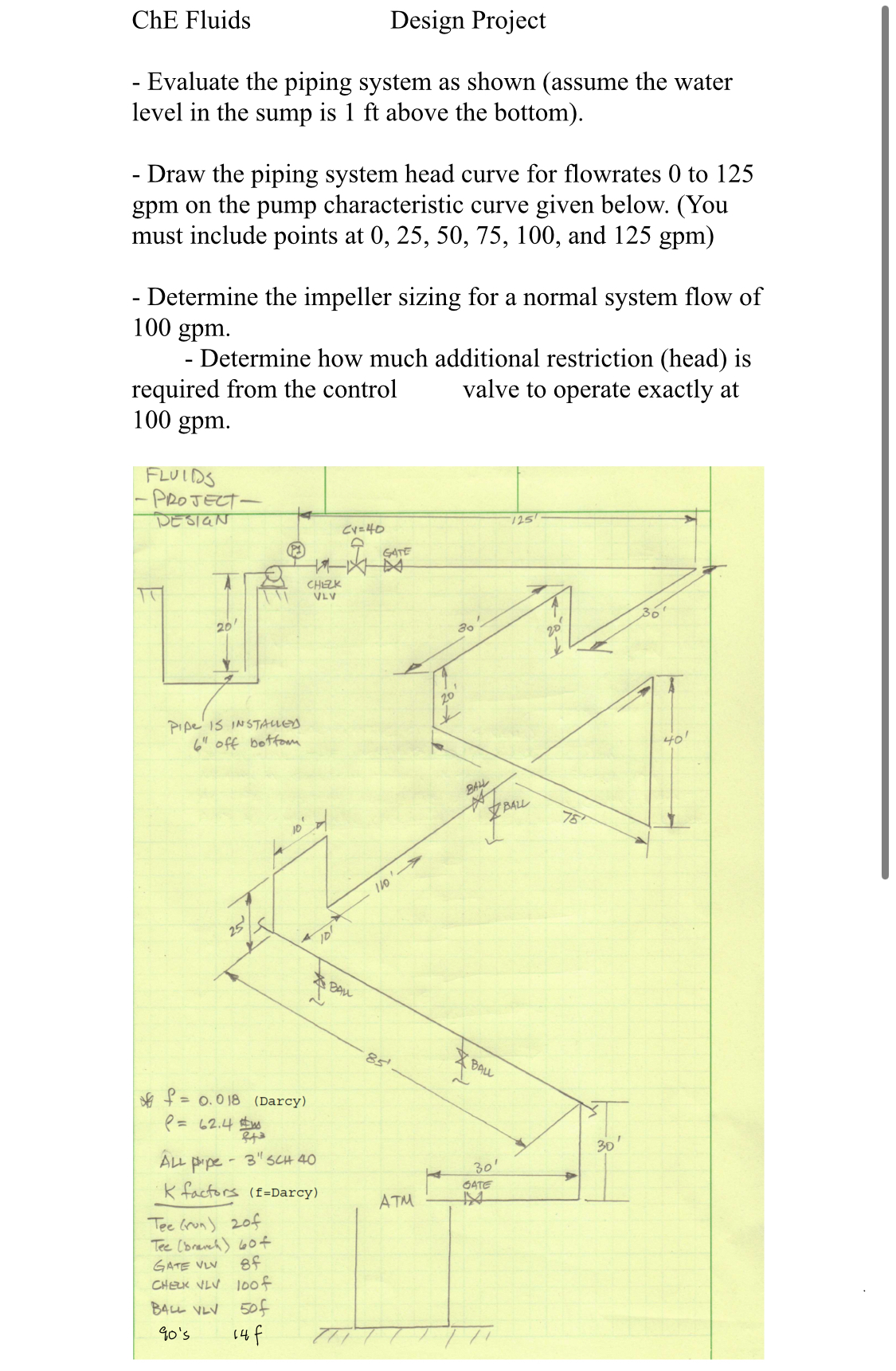

Evaluate the piping system as shown $($assume the water level in the sump is $1ft$ above the bottom$).$

Draw the piping system head curve for flowrates $0$ to $125$ gpm on the pump characteristic curve given below. $($You must include points at $0,25,50,75,100,$ and $125gpm)$

Determine the impeller sizing for a normal system flow of $100gpm.$

Determine how much additional restriction $($head$)$ is required from the control valve to operate exactly at $100gpm.$
