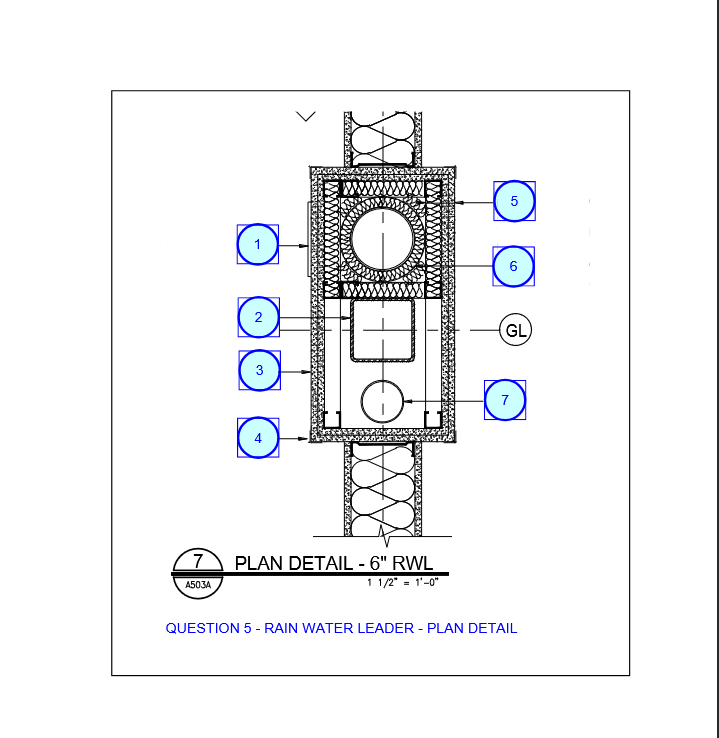

RAIN WATER LEADER $-$ PLAN DETAIL Question: please complete this matching question. Please match the options below to the numbers in the image$2$nd image to support. Thanks

A$.4"$ SAN. $($REFER TO MECH.$)$

B$.$ FURR OUT RWL WITH $5/8"$ TYPE $\text{'}$X$\text{'}$ GYPSUM BOARD. STEEL STUD FRAMING TO MIN. WIDTH. FILL VOID SPACE WITH ROXUL SAFE AND SOUND INSULATION.

C$.$ INSULATED $6"$ RWL FROM ROOF ABOVE. $($REFER TO MECH.$)$

D$.$ CLEANOUT ACCESS PANEL AT FLOOR LEVEL IF REQUIRED PER MECH. DRAWINGS. BLOCK TO SUIT

E$.1$HOUR$/2$HOUR FIRE RATED STEEL COLUMN REFER TO STRUCTURAL FOR DETAILS

G$.1$H FIRE RATED $-2$ LAYERS $5/8"$ TYPE $"$X$"$ or $2$H FIRE RATED $-3$ LAYERS $5/8"$ TYPE $"$X$"-$ REFER TO MAIN FLOOR, GYPSUM BOARD TYP$.$

H$.$ DRYWALL CORNER BEAD $($TYPICAL$)$
