Question: CIVL 4 4 1 0 - AdVAnced Structural Analysis Truss HW 3 - Stadium Truss A stadium roof truss is loaded as shown. Determine the

CIVL 4410- AdVAnced Structural Analysis
Truss HW 3- Stadium Truss

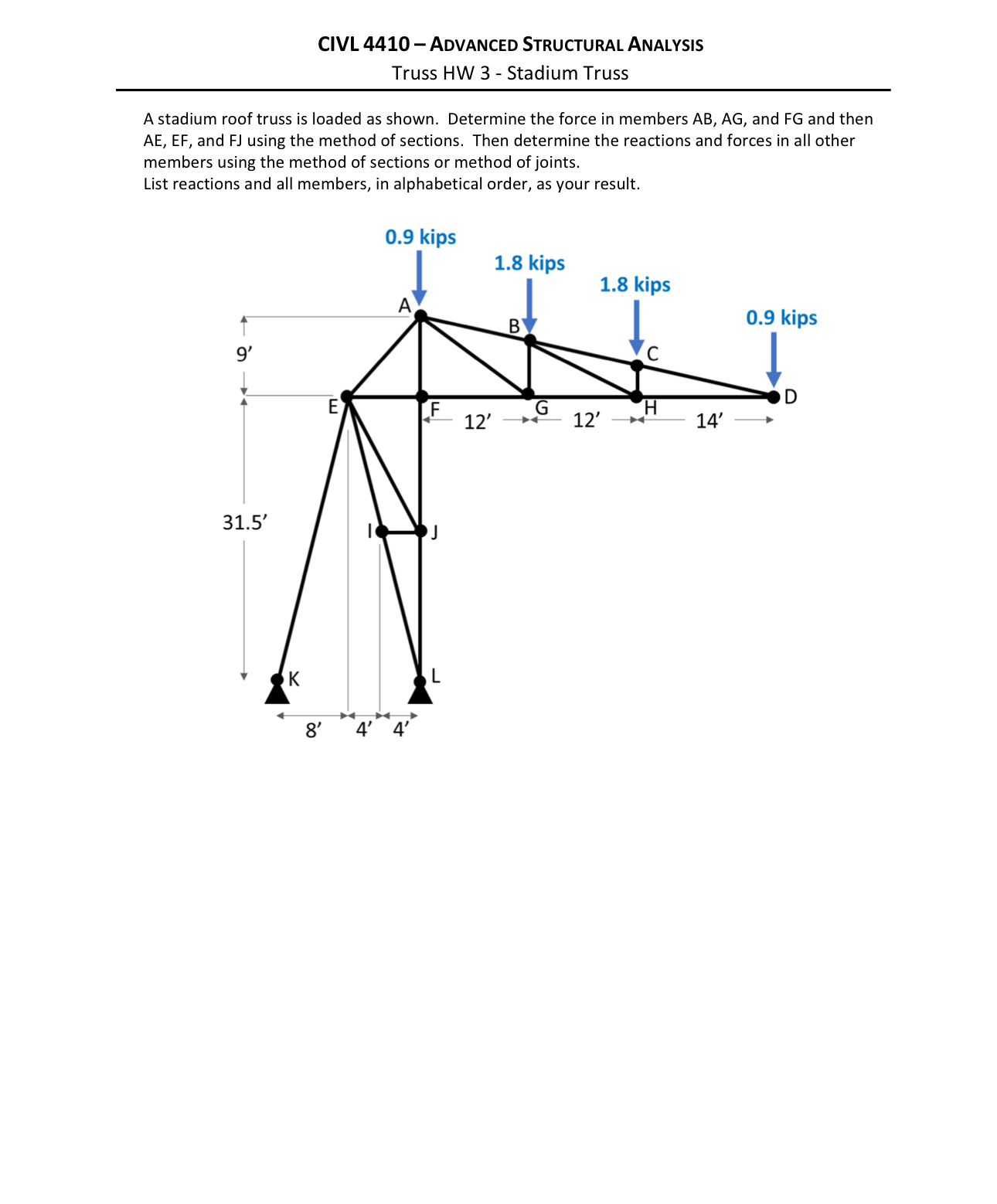

A stadium roof truss is loaded as shown. Determine the force in members AB,AG, and FG and then AE,EF, and FJ using the method of sections. Then determine the reactions and forces in all other members using the method of sections or method of joints.
List reactions and all members, in alphabetical order, as your result.
CIVL 4 4 1 0 - AdVAnced Structural Analysis Truss

Step by Step Solution

There are 3 Steps involved in it
