Question: CL - 2 ) Find the stress at a point 3 inches above the platform centered on the face closest to you. Each beam is

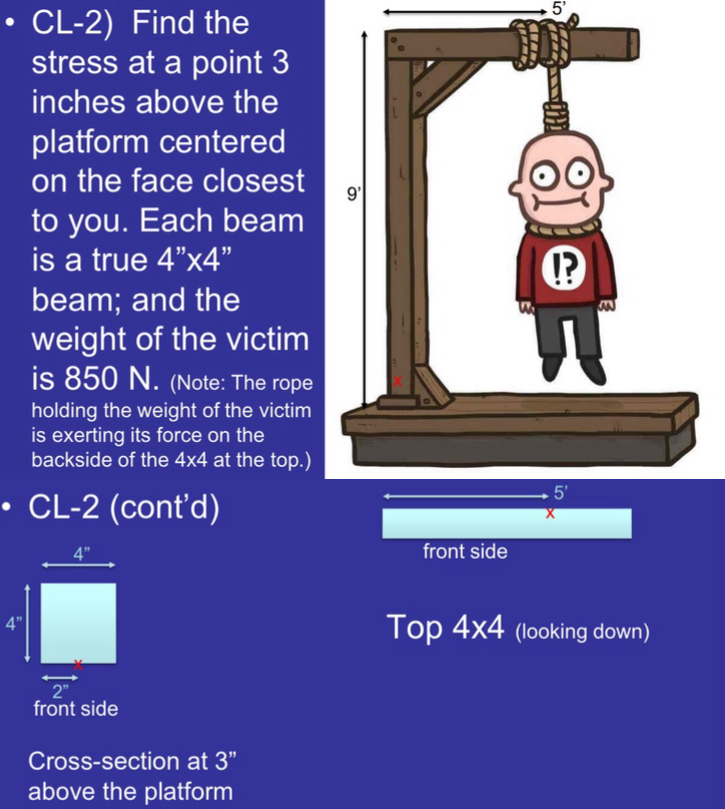

CL-2) Find the stress at a point 3 inches above the platform centered on the face closest to you. Each beam is a true 4"x4" beam; and the weight of the victim is 850 N .(Note: The rope holding the weight of the victim is exerting its force on the backside of the 44 at the top.)
CL-2(cont'd)
Top 4x4(looking down)
Cross-section at 3"
above the platform
I need help on both parts please
