Question: Class Exercise 3 - Manometer Calculations Determine the gage pressure and the absolute pressure along the center line of the water pipe based on the

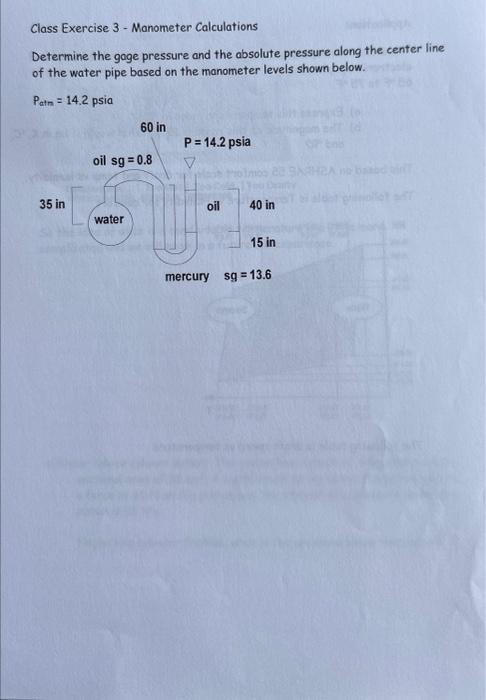

Class Exercise 3 - Manometer Calculations Determine the gage pressure and the absolute pressure along the center line of the water pipe based on the manometer levels shown below. Patn=14.2psia

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
