Question: CMPE 370 Fall 2018 Midherm Exam-Practical October 24, 2018 2. (15 points) Consider the following cirouit 10 K Ohm Re 4.7K-ohm Describe the functionality of

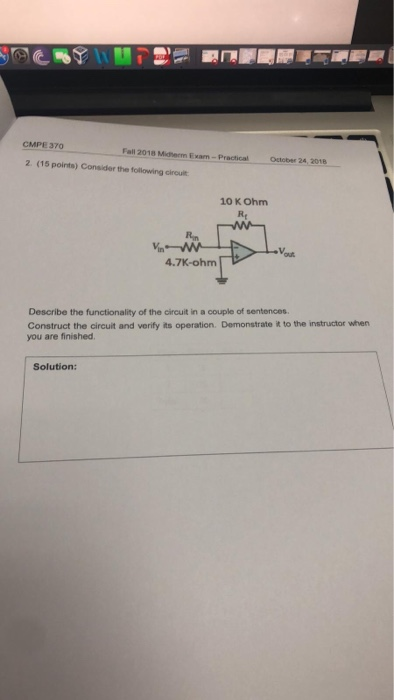

CMPE 370 Fall 2018 Midherm Exam-Practical October 24, 2018 2. (15 points) Consider the following cirouit 10 K Ohm Re 4.7K-ohm Describe the functionality of the circuit in a couple of sentences. Construct the circuit and verify its operation. Demonstrate i to the instructor when you are finished Solution
