CODE BELOW

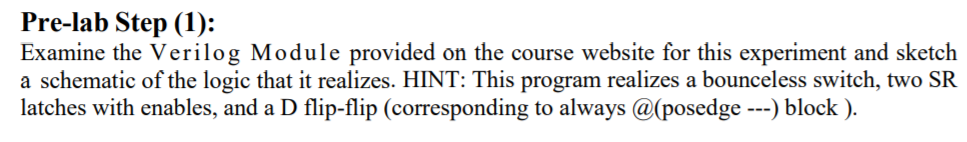

module lab8(CLKIN, CS, RS, SS, CM, RM, SM, D, NC, NO,BQ, QM, QM_N, QS, QS_N, QFF); //INPUTS input CLKIN/*synthesis loc="1"*/; input CS /*synthesis loc="2"*/; input RS /*synthesis loc="3"*/; input SS /*synthesis loc="4"*/; input CM /*synthesis loc="5"*/; input RM /*synthesis loc="6"*/; input SM /*synthesis loc="7"*/; input D /*synthesis loc="8"*/; input NC /*synthesis loc="9"*/; input NO /*synthesis loc="10"*/; //OUTPUTS output BQ /*synthesis loc="23"*/; output reg QFF /*synthesis loc="18"*/; output QM /*synthesis loc="17"*/; output QM_N /*synthesis loc="16"*/; output QS /*synthesis loc="15"*/; output QS_N /*synthesis loc="14"*/; // Bounceless Switch assign BQ = ~NO | (NC & BQ); // Slave Latch assign QS = ~(~(SS&CS) & QS_N); assign QS_N = ~(~(RS&CS) & QS); // Master Latch assign QM = ~(~(SM&CM) & QM_N); assign QM_N = ~(~(RM&CM) & QM); // D flipflop always @(posedge CLKIN) begin QFF   Pre-lab Step (1): Examine the Verilog Module provided on the course website for this experiment and sketclh latches with enables, and a D flip-flip (corresponding to always @(posedge --) block ).  Pre-lab Step (1): Examine the Verilog Module provided on the course website for this experiment and sketclh latches with enables, and a D flip-flip (corresponding to always @(posedge --) block )
