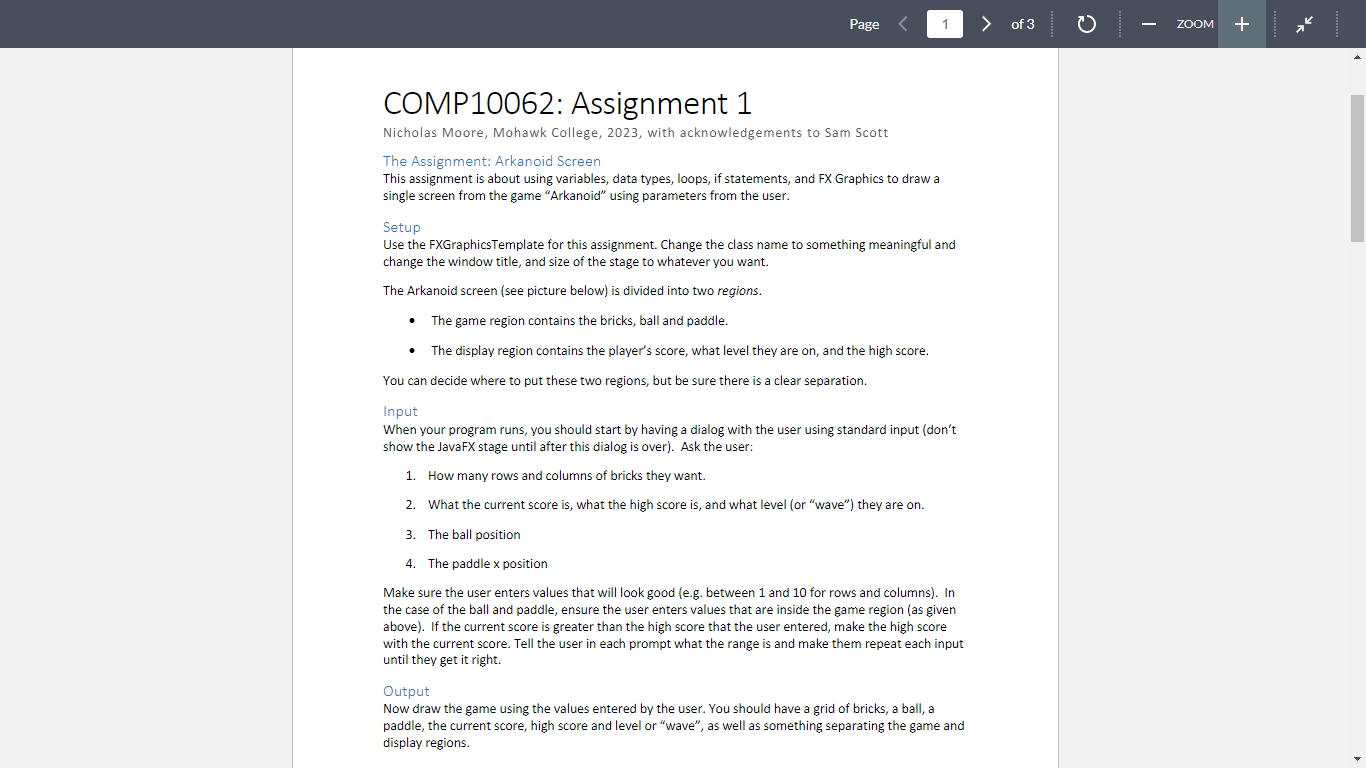

COMP$10062$: Assignment $1$

Nicholas Moore, Mohawk College, $2023,$ with acknowledgements to Sam Scott

The Assignment: Arkanoid Screen

This assignment is about using variables, data types, loops, if statements, and FX Graphics to draw a

single screen from the game "Arkanoid" using parameters from the user.

Setup

Use the FXGraphicsTemplate for this assignment. Change the class name to something meaningful and

change the window title, and size of the stage to whatever you want.

The Arkanoid screen $($see picture below$)$ is divided into two regions.

The game region contains the bricks, ball and paddle.

The display region contains the player's score, what level they are on$,$ and the high score.

You can decide where to put these two regions, but be sure there is a clear separation.

Input

When your program runs, you should start by having a dialog with the user using standard input $($don$\text{'}$t

show the JavaFX stage until after this dialog is over$).$ Ask the user:

How many rows and columns of bricks they want.

What the current score is$,$ what the high score is$,$ and what level $($or "wave"$)$ they are on$.$

The ball position

The paddle $x$ position

Make sure the user enters values that will look good $($e$.$g$.$ between $1$ and $10$ for rows and columns$).$ In

the case of the ball and paddle, ensure the user enters values that are inside the game region $($as given

above$).$ If the current score is greater than the high score that the user entered, make the high score

with the current score. Tell the user in each prompt what the range is and make them repeat each input

until they get it right.

Output

Now draw the game using the values entered by the user. You should have a grid of bricks, a ball, a

paddle, the current score, high score and level or "wave", as well as something separating the game and

display regions.
