COMPLETE PYTHON CODE PLEASE

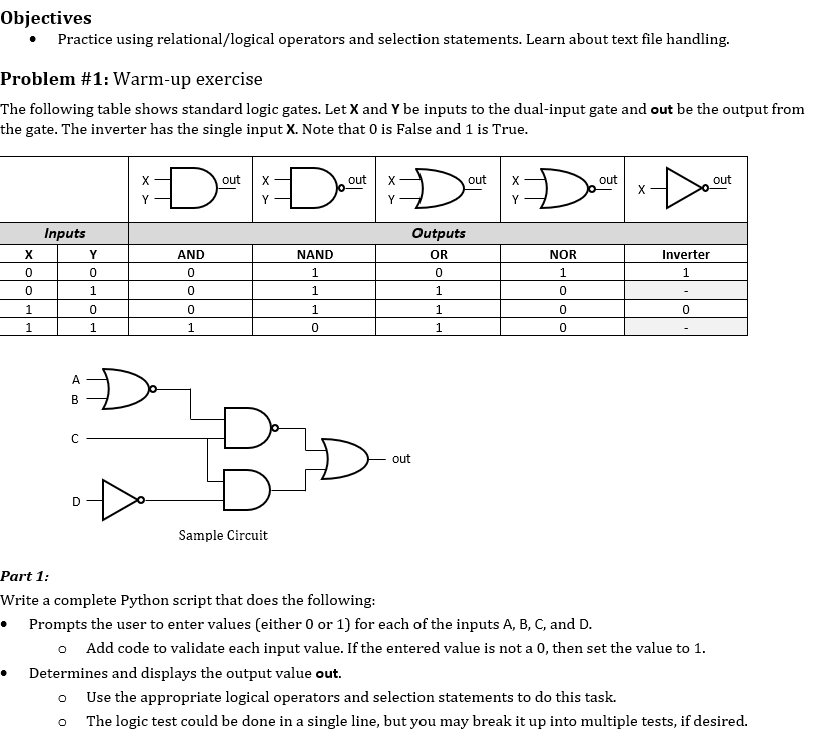

Objectives

• Practice using relational/logical operators and selection statements. Learn about text file handling.

Problem #1: Warm-up exercise

The following table shows standard logic gates. Let X and Y be inputs to the dual-input gate and out be the output from the gate. The inverter has the single input X. Note that 0 is False and 1 is True.

		X Y out	X Y out	X Y out	X Y out	X out
Inputs		Outputs
X	Y	AND	NAND	OR	NOR	Inverter
0	0	0	1	0	1	1
0	1	0	1	1	0	-
1	0	0	1	1	0	0
1	1	1	0	1	0	-

A

B

out

C

D

Sample Circuit

Part 1:

Write a complete Python script that does the following:

• Prompts the user to enter values (either 0 or 1) for each of the inputs A, B, C, and D.
  • Add code to validate each input value. If the entered value is not a 0, then set the value to 1.
• Determines and displays the output value out.
  • Use the appropriate logical operators and selection statements to do this task.
  • The logic test could be done in a single line, but you may break it up into multiple tests, if desired.
