Question: Complete the characteristic table for the sequential circuit shown below: Next State 100 2 0 1 3 1 0 O A) Next State A -

Complete the characteristic table for the sequential circuit shown below: Next

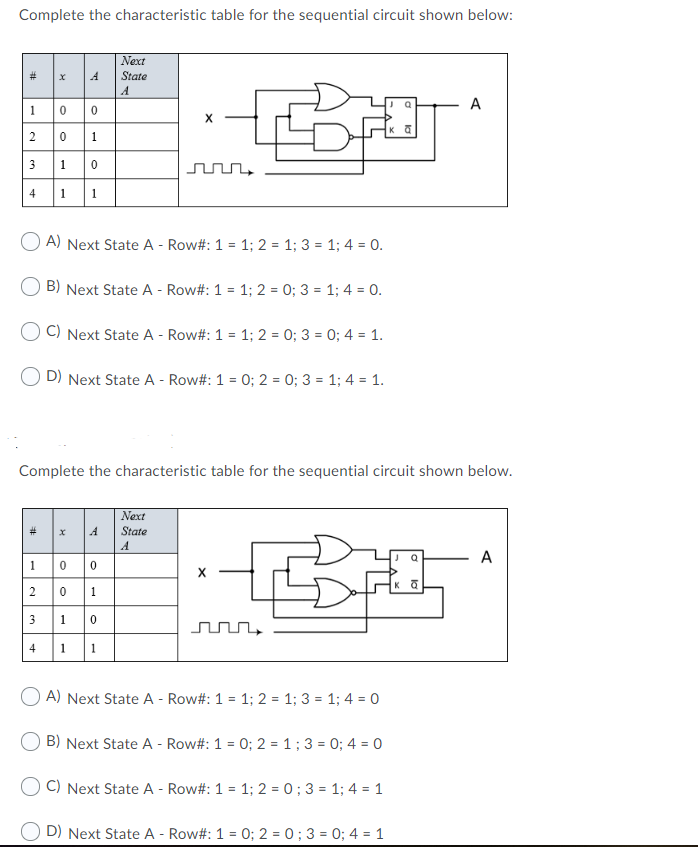

Complete the characteristic table for the sequential circuit shown below: Next State 100 2 0 1 3 1 0 O A) Next State A - Row#: 1 = 1; 2 = 1; 3 = 1; 4 = 0. O B) Next State A - Row#: 1 = 1; 2 = 0; 3 = 1; 4 = 0. O C) Next State A - Row#: 1 = 1; 2 = 0; 3 = 0; 4 = 1. OD) Next State A - Row#: 1 = 0; 2 = 0; 3 = 1; 4 = 1. Complete the characteristic table for the sequential circuit shown below. X 4 Next State 100 O A) Next State A - Row#: 1 = 1; 2 = 1; 3 = 1; 4 = 0 O B) Next State A - Row#: 1 = 0; 2 = 1;3 = 0; 4 = 0 O C) Next State A - Row#: 1 = 1; 2 = 0; 3 = 1; 4 = 1 O D) Next State A - Row#: 1 = 0; 2 = 0; 3 = 0; 4 = 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Complete the characteristic table for the sequential circuit shown below. Next State # A A 1 0 0 ? 2 0 1 ? 3 1 0 ? 4 1 1 ? Explain your reasoning! You can label outputs of gates to illustrate it...

C) Next state A - Row#: 1 = 1; 2 = 0; 3 = 0; 4 = 1 D) Next state A - Row#: 1 = 0; 2 = 0; 3 = 1; 4 = 1 C) Next state A - Row#: 1 = 1; 2 = 0; 3 = 1; 4 = 1 D) Next state A - Row#: 1 = 0; 2 = 0; 3 = 0; 4...

A. (20 Pts) Complete the characteristic table for the sequential circuit shown below. Next State 0 2 0) 0 4 A)Next State A-Row#: 1.1: 2-1: 3-1:4-0 B)Next State A-Row#: 1 = 1:2-0; 3-1;4-0 C) Next...

Complete the characteristic table for the sequential circuit shown below. Next State O A. Next State A: () B. Next State A: 0 0 0 C. Next State A: D. Next State A: 0

Complete the characteristic table for the sequential circuit shown below. Next State O A. Next State A: O B. Next State A: C. Next State A: O D.Next State A

Complete the characteristic table for the sequential circuit shown below. The logic circuit below is supposed to be designed to produce the truth table also shown below. However, there is a component...

Complete the characteristic table for the sequential circuit shown below. A. Next State A: 1 0 1 0 B. Next State A: 1 0 0 0 C. Next State A: 0 1 1 1 D. Next State A: 0 1 0 1 Next State 0 3 4

3. Explain and answer the following questions (20 pt): a. Complete the characteristic table for the sequential circuit shown below (10-pt) # A Next State A 1 0 0 J Q A 2 0 1 K 3 1 0 4 1 1 b. Given...

1. a) Draw a state diagram for a modulo 15-counter. b) Is the design a Mealy or Moore machine c) How many T flip flops are needed to encode the number of states in your diagram. d) Create a state...

Given the sequential circuit shown complete the state table for next state \ ( \ mathbf { A } \ ) and \ ( \ mathbf { B } \ ) for the entries shown.
