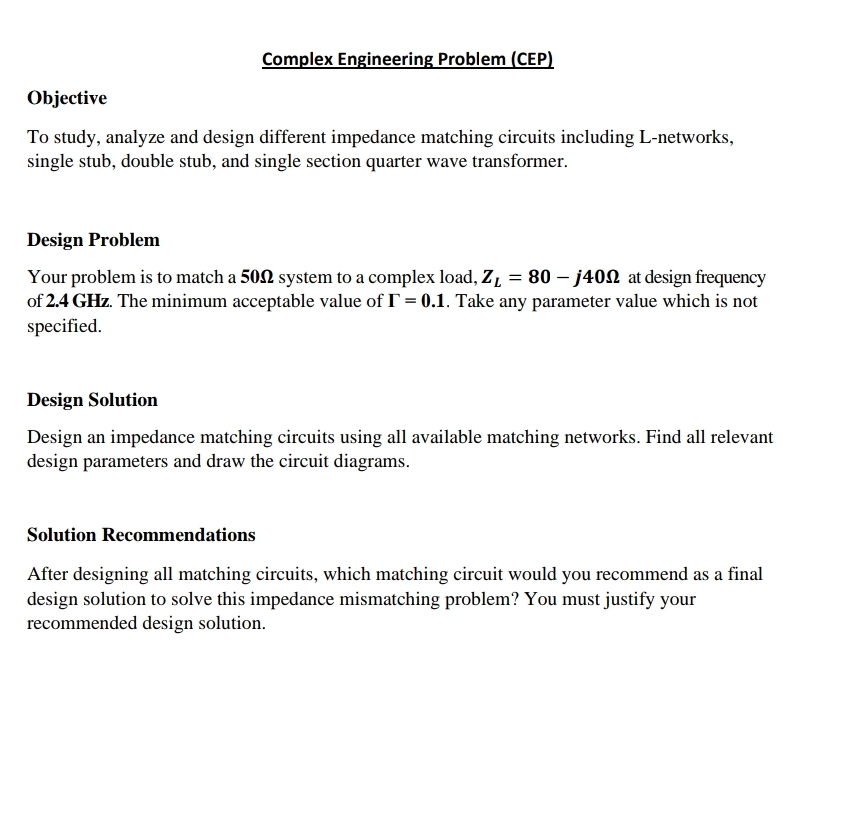

Complex Engineering Problem $($CEP$)$

Objective

To study, analyze and design different impedance matching circuits including L$-$networks, single stub, double stub, and single section quarter wave transformer.

Design Problem

Your problem is to match a $50$ system to a complex load, $Z_L=80-j40$ at design frequency of $2\mathrm{.}4GHz.$ The minimum acceptable value of $=0\mathrm{.}1.$ Take any parameter value which is not specified.

Design Solution

Design an impedance matching circuits using all available matching networks. Find all relevant design parameters and draw the circuit diagrams.

Solution Recommendations

After designing all matching circuits, which matching circuit would you recommend as a final design solution to solve this impedance mismatching problem? You must justify your recommended design solution.
