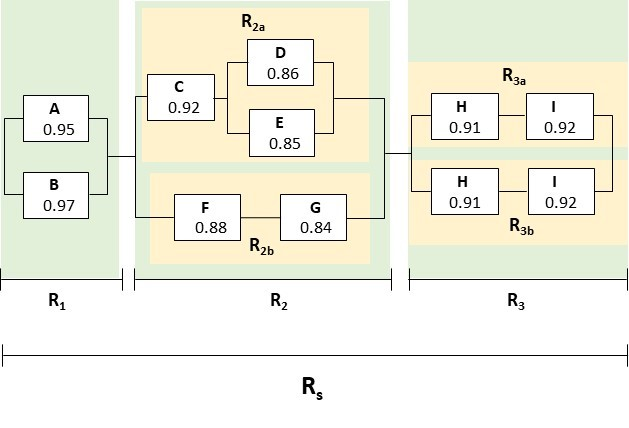

Complex System Reliability II Scenario 3 Consider the following system and calculate the system reliability. Note that the reliability of each component is listed below the component name. For example, component A has a reliability of .95. Round (and report) all calculated values (including intermediate calculations) to SIX DECIMAL PLACES.

Report each of the values in the table below to SIX DECIMAL places.

R₁

R₂

R_2a

R_2b

R₃

R_3a

R_3b

R_s

Rza 0.86 0.92 0.95 0.91 0.92 0.85 0.97 0.91 0.92 0.88 0.84 R3b Rab
