Computer Networks - Dynamic Routing and Name Resolution

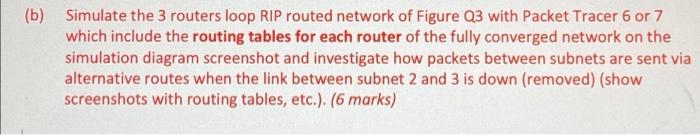

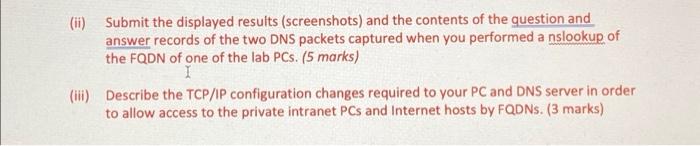

(b) Simulate the 3 routers loop RIP routed network of Figure Q3 with Packet Tracer 6 or 7 which include the routing tables for each router of the fully converged network on the simulation diagram screenshot and investigate how packets between subnets are sent via alternative routes when the link between subnet 2 and 3 is down (removed) (show screenshots with routing tables, etc.). (6 marks) (ii) Submit the displayed results (screenshots) and the contents of the question and answer records of the two DNS packets captured when you performed a nslookup of the FQDN of one of the lab PCs. (5 marks) (iii) Describe the TCP/IP configuration changes required to your PC and DNS server in order to allow access to the private intranet PCs and Internet hosts by FQDNs
