computer science digital logic.

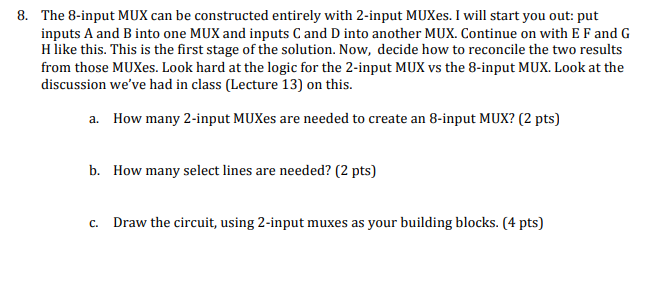

8. The 8-input MUX can be constructed entirely with 2-input MUXes. I will start you out: put inputs A and B into one MUX and inputs C and D into another MUX. Continue on with E F and G H like this. This is the first stage of the solution. Now, decide how to reconcile the two results from those MUXes. Look hard at the logic for the 2-input MUX vs the 8-input MUX. Look at the discussion we've had in class (Lecture 13) on this. a. How many 2-input MUXes are needed to create an 8-input MUX? (2 pts) b. How many select lines are needed? (2 pts) c. Draw the circuit, using 2-input muxes as your building blocks. (4 pts)
