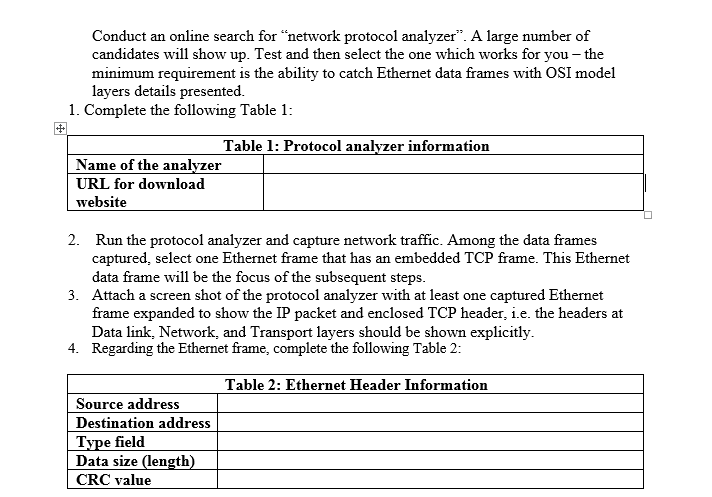

Conduct an online search for network protocol analyzer. A large number of candidates will show up. Test and then select the one which works for you the minimum requirement is the ability to catch Ethernet data frames with OSI model layers details presented.

1. Complete the following Table 1:

Table 1: Protocol analyzer information
Name of the analyzer
URL for download website

2. Run the protocol analyzer and capture network traffic. Among the data frames captured, select one Ethernet frame that has an embedded TCP frame. This Ethernet data frame will be the focus of the subsequent steps.

Attach a screen shot of the protocol analyzer with at least one captured Ethernet frame expanded to show the IP packet and enclosed TCP header, i.e. the headers at Data link, Network, and Transport layers should be shown explicitly.

Regarding the Ethernet frame, complete the following Table 2:

Table 2: Ethernet Header Information
Source address
Destination address
Type field
Data size (length)
CRC value

Conduct an online search for "network protocol analyzer". A large number of candidates will show up. Test and then select the one which works for you - the minimum requirement is the ability to catch Ethernet data frames with OSI model layers details presented. 1. Complete the following Table 1 Table 1: Protocol analvzer information Name of the analvzer URL for download website 2. Run the protocol analyzer and capture network traffic. Among the data frames captured, select one Ethernet frame that has an embedded TCP frame. This Ethernet data frame will be the focus of the subsequent steps Attach a screen shot of the protocol analyzer with at least one captured Ethernet frame expanded to show the IP packet and enclosed TCP header, i.e. the headers at Data link, Network, and Transport layers should be shown explicitly 3. 4. Regarding the Ethernet frame, complete the following Table12 Table 2: Ethernet Header Information Source address Destination address Type field Data size (length CRC value
