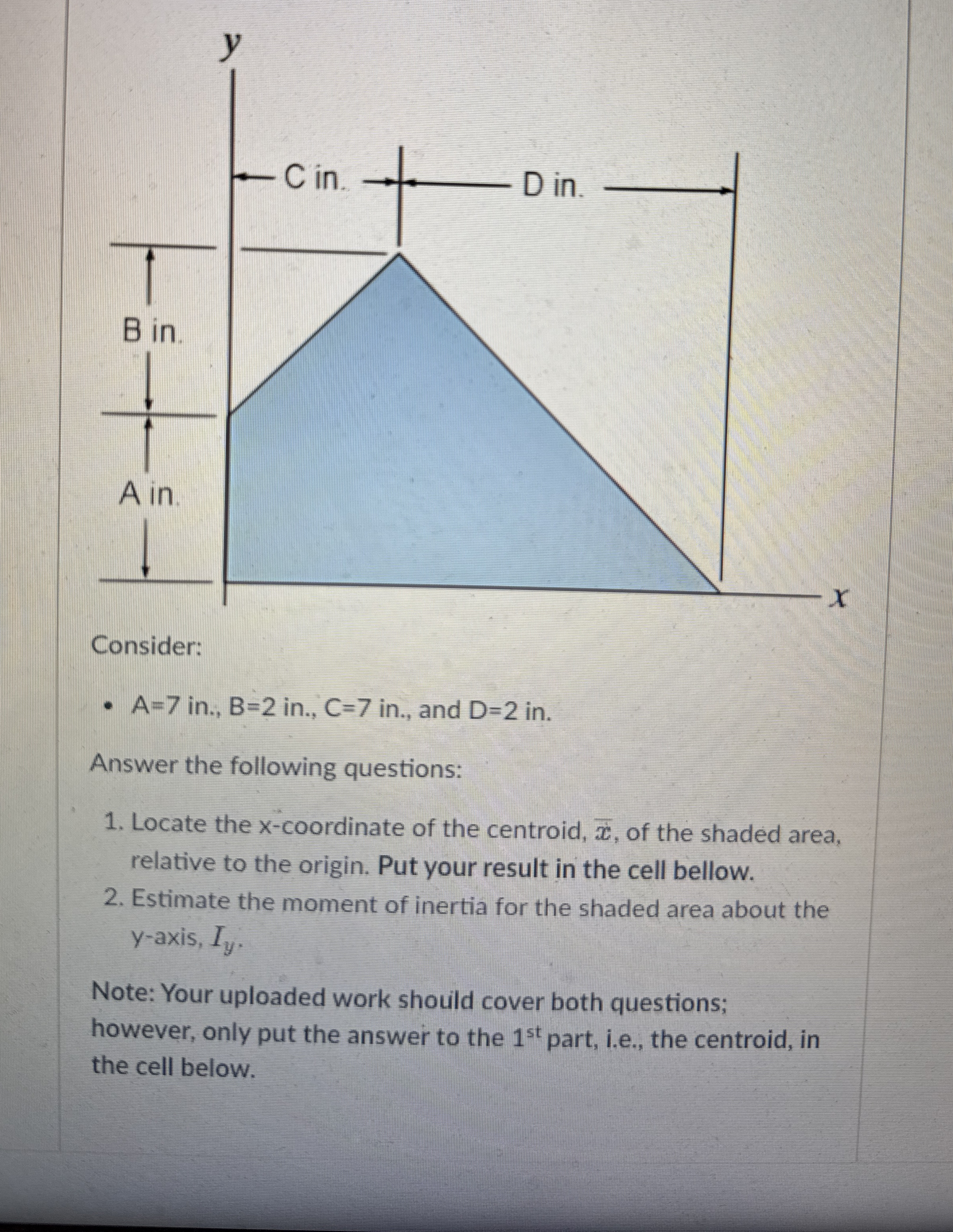

Question: Consider: A = 7 in . , B = 2 in . , C = 7 in . , and D = 2 in .

Consider:
A=7 in.,B=2 in.,C=7 in., and D=2 in.
Answer the following questions:
Locate the x-coordinate of the centroid, x, of the shaded area, relative to the origin. Put your result in the cell bellow.
Estimate the moment of inertia for the shaded area about the y-axis, Iy.
Note: Your uploaded work should cover both questions; however, only put the answer to the 1st part, i.e., the centroid, in the cell below.
Consider: A = 7 in . , B = 2 in . , C = 7 in . ,
