Question: Consider a double - fluid manometer attached to an air pipe shown in the figure. If the specific gravity of one fluid is 1 3

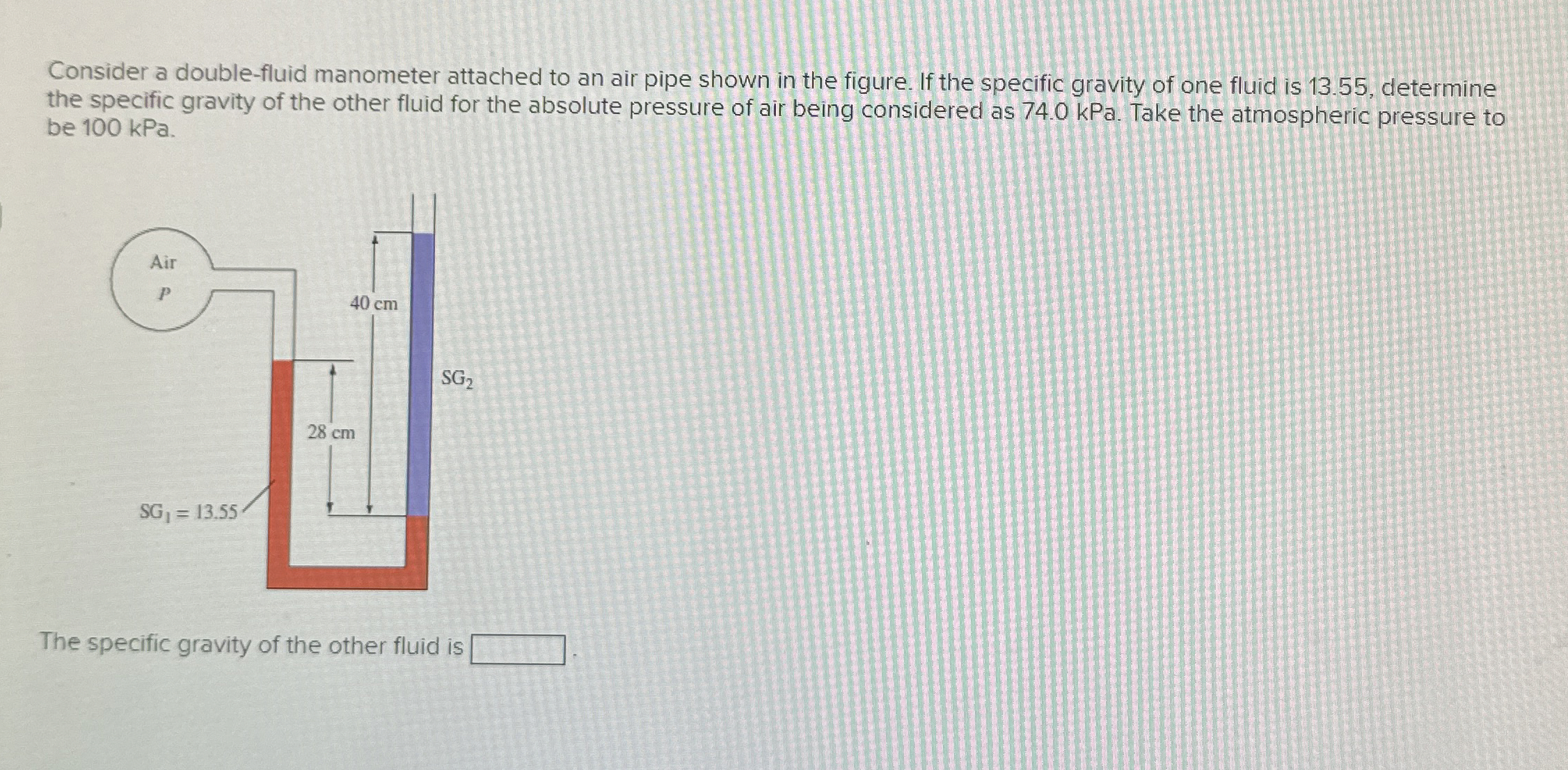

Consider a double-fluid manometer attached to an air pipe shown in the figure. If the specific gravity of one fluid is 13.55, determine
the specific gravity of the other fluid for the absolute pressure of air being considered as 74.0 kPa . Take the atmospheric pressure to
be 100 kPa .
The specific gravity of the other fluid is
Consider a double - fluid manometer attached to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
