Question: Consider a printer circuit board manufacturing process. After processing and electrical testing/inspection, good PCB's 75% are sent to packaging and shipping, and the balance 25%

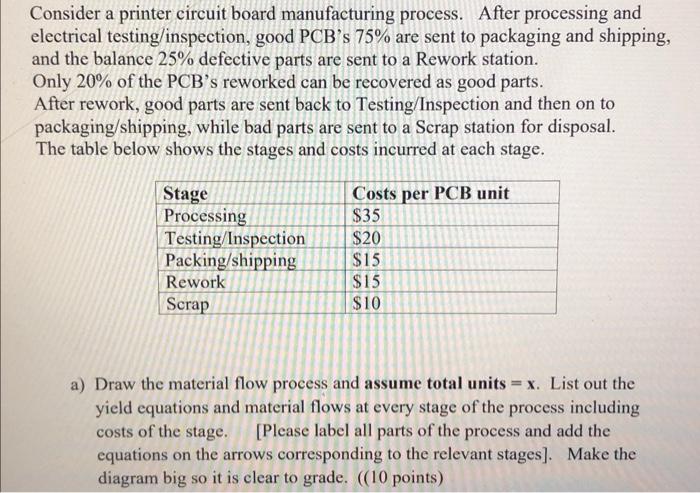

Consider a printer circuit board manufacturing process. After processing and electrical testing/inspection, good PCB's 75% are sent to packaging and shipping, and the balance 25% defective parts are sent to a Rework station. Only 20% of the PCB's reworked can be recovered as good parts. After rework, good parts are sent back to Testing/Inspection and then on to packaging/shipping, while bad parts are sent to a Scrap station for disposal. The table below shows the stages and costs incurred at each stage. Stage Processing Testing/Inspection Packing/shipping Rework Scrap Costs per PCB unit $35 $20 $15 $15 $10 a) Draw the material flow process and assume total units = x. List out the yield equations and material flows at every stage of the process including costs of the stage. [Please label all parts of the process and add the equations on the arrows corresponding to the relevant stages). Make the diagram big so it is clear to grade. ((10 points)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
