Question: Consider a sequential circuit using three J-K flip-flops and one AND logic gate as shown below. The output of the circuit becomes 1? after every

Consider a sequential circuit using three J-K flip-flops and one AND

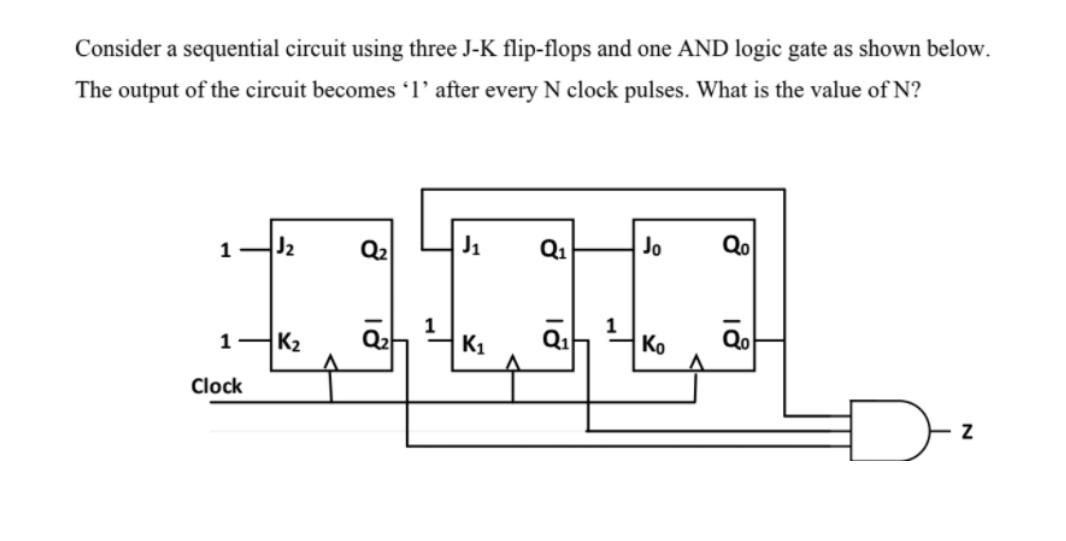

Consider a sequential circuit using three J-K flip-flops and one AND logic gate as shown below. The output of the circuit becomes 1? after every N clock pulses. What is the value of N? 1 Ja 0a| Ji Q1 Jo Qo 1 1 K2 Ki | Ko Qe! Clock # - z
