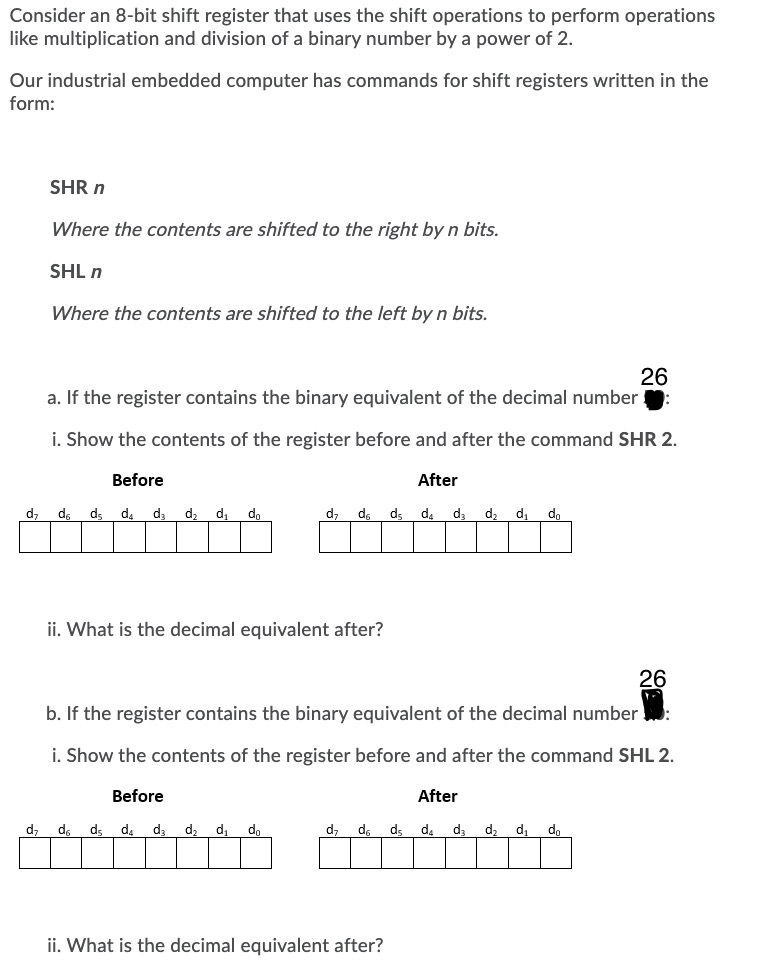

Consider an $8-$bit shift register that uses the shift operations to perform operations

like multiplication and division of a binary number by a power of $2.$

Our industrial embedded computer has commands for shift registers written in the

form:

SHR $n$

Where the contents are shifted to the right by $n$ bits.

SHL $n$

Where the contents are shifted to the left by $n$ bits.

a$.$ If the register contains the binary equivalent of the decimal number $26$:

i$.$ Show the contents of the register before and after the command SHR $2.$

Before

After

ii$.$ What is the decimal equivalent after?

b$.$ If the register contains the binary equivalent of the decimal number $26$:

i$.$ Show the contents of the register before and after the command SHL $2.$

ii$.$ What is the decimal equivalent after?
