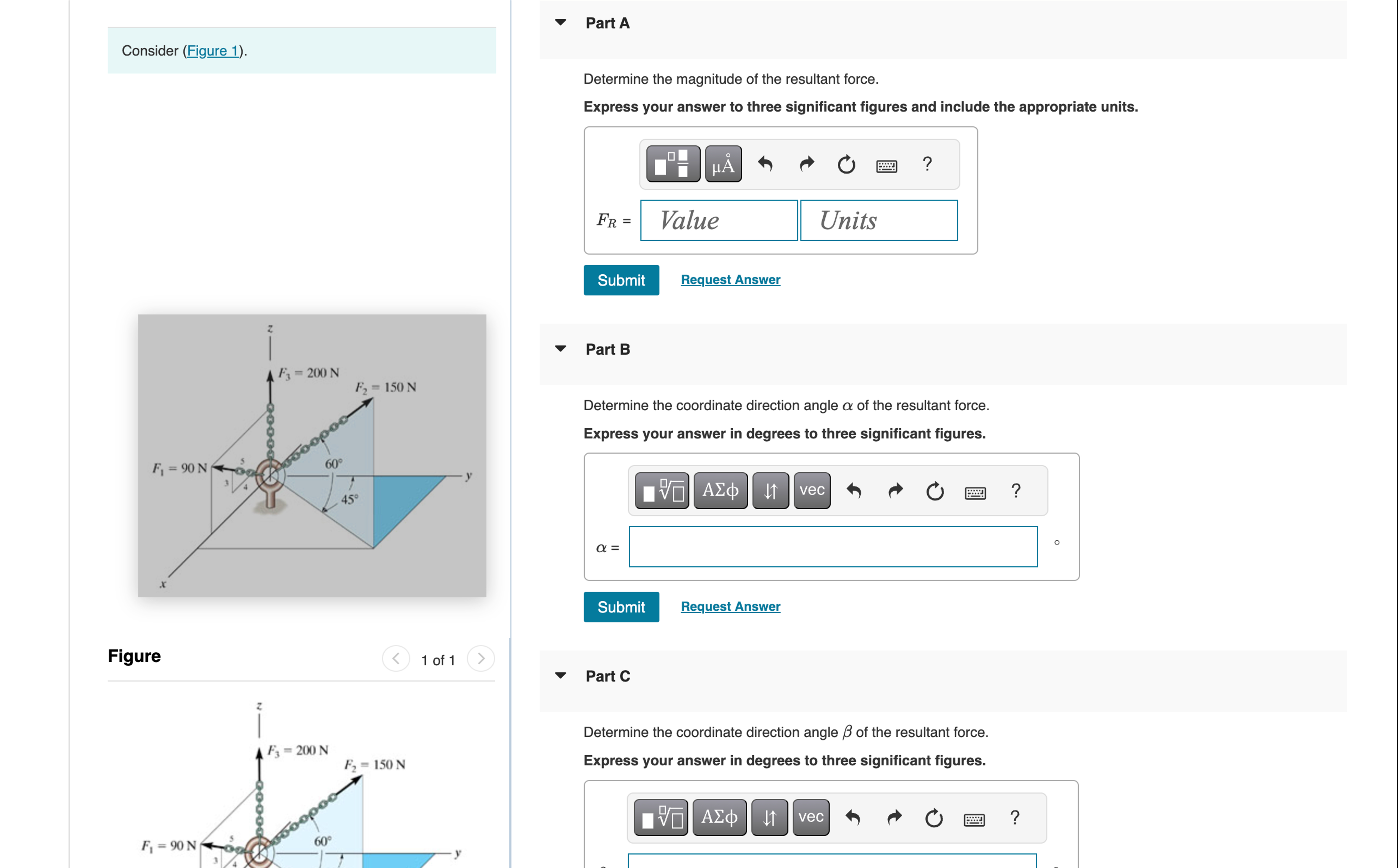

Question: Consider ( Figure 1 ) . Part A Determine the magnitude of the resultant force. Express your answer to three significant figures and include the

Consider (Figure 1).
Part A
Determine the magnitude of the resultant force.
Express your answer to three significant figures and include the appropriate units.
FR=
Request Answer
Part B
Determine the coordinate direction angle of the resultant force.
Express your answer in degrees to three significant figures.
Request Answer
Figure
1 of 1
=
Part C
Determine the coordinate direction angle of the resultant force.
Express your answer in degrees to three significant figures.Part D
Determine the coordinate direction angle \gamma
of the resultant force.
Express your answer in degrees to three significant figures.
Consider ( Figure 1 ) . Part A Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the loading system by an equivalent resultant force and couple moment acting at point A . Assume F 1 = 1 3 0 l b , F 2 = 2 3 0 l b and F 3 = 2 0 0 lb . ( Figure 1 ) Part A Determine the...

Q:

If F A = 8 k N and F B = 3 k N , represent the force system by a resultant force, and specify its location on the x - y plane ( Figure 1 ) . Part A Determine the magnitude of the resultant force....

Q:

Part B Determine the direction of the resultant force. Express your answer in degrees to three significant figures. Figure 1 of 1 In ( Figure 1 ) , F 1 = 1 5 0 N , F 2 = 3 5 0 N , F 3 = 2 5 0 N ....

Q:

Replace the force system shown in ( Figure 1 ) by an equivalent resultant force and couple moment at point P . Suppose that F 1 = 5 2 0 N and F 2 = 7 0 0 N . Figure 1 of 1 Part A Determine the...

Q:

Replace the distributed loading shown in ( Figure 1 ) by an equivalent resultant force. Suppose that w 1 = 4 k N m and w 2 = 1 k N m . Figure 1 of 1 Part A Determine the magnitude of the resultant...

Q:

Replace the loading system acting on the post by an equivalent resultant force and couple moment at point B . Suppose that F 1 = 8 0 0 N and F 2 = 5 5 0 N . ( Figure 1 ) Part A Determine the...

Q:

Problem 4 . 1 0 4 2 of 6 Figure 1 of 1 Part A Determine the magnitude of the resultant force. Express your answer to three significant figures and include the appropriate units. F R = Request Answer...

Q:

Submit Request Answer Figure Part C Specify where the force acts, measured from end A . Express your answer using three significant figures. x = ft to the right from end A . Replace the three forces...

Q:

Replace the force system acting on the post by a resultant force and couple moment at point O . Take F 1 = 3 3 0 l b and F 2 = 2 4 0 l b * ( Figure 1 ) Part A Determine the magnitude of the resultant...

Q:

Replace the distributed loading by an equivalent resultant force. Suppose that w 1 = 5 k N m and w 2 = 1 k N m . ( Figure 1 ) Part A Determine the magnitude of the resultant force. Express your...
