Question: Replace the distributed loading by an equivalent resultant force. Suppose that w 1 = 5 k N m and w 2 = 1 k N

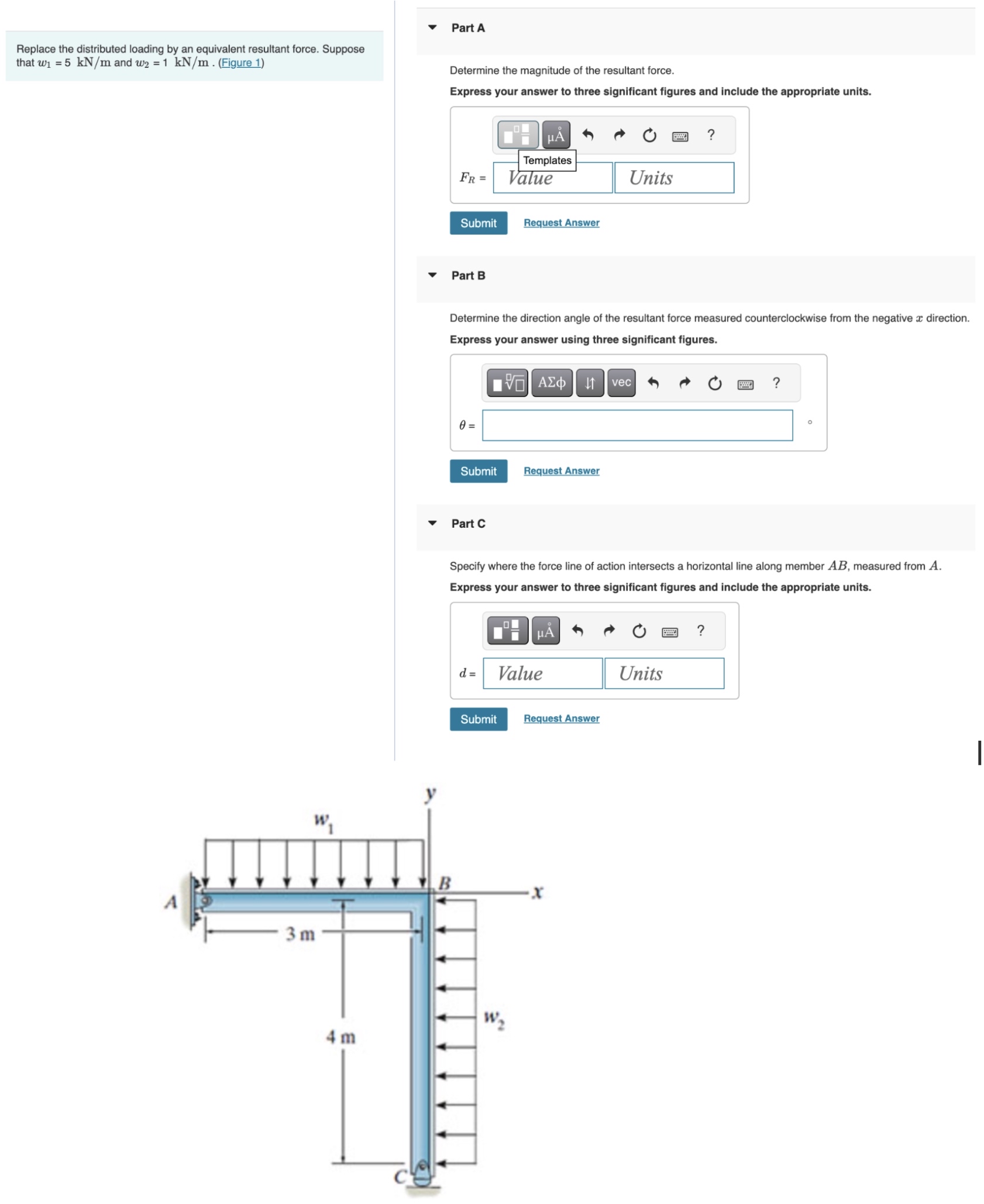

Replace the distributed loading by an equivalent resultant force. Suppose that w1=5kNm and w2=1kNm.(Figure 1)
Part A
Determine the magnitude of the resultant force.
Express your answer to three significant figures and include the appropriate units.
Part B
Determine the direction angle of the resultant force measured counterclockwise from the negative x direction. Express your answer using three significant figures.
=
Part C
Specify where the force line of action intersects a horizontal line along member AB, measured from A. Express your answer to three significant figures and include the appropriate units.
d=
Request Answer
Replace the distributed loading by an equivalent

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
