Question: Consider the beam below, which has a distributed load along the entire beam and an applied moment at point B. Determine the reactions at points

Consider the beam below, which has a distributed load along the

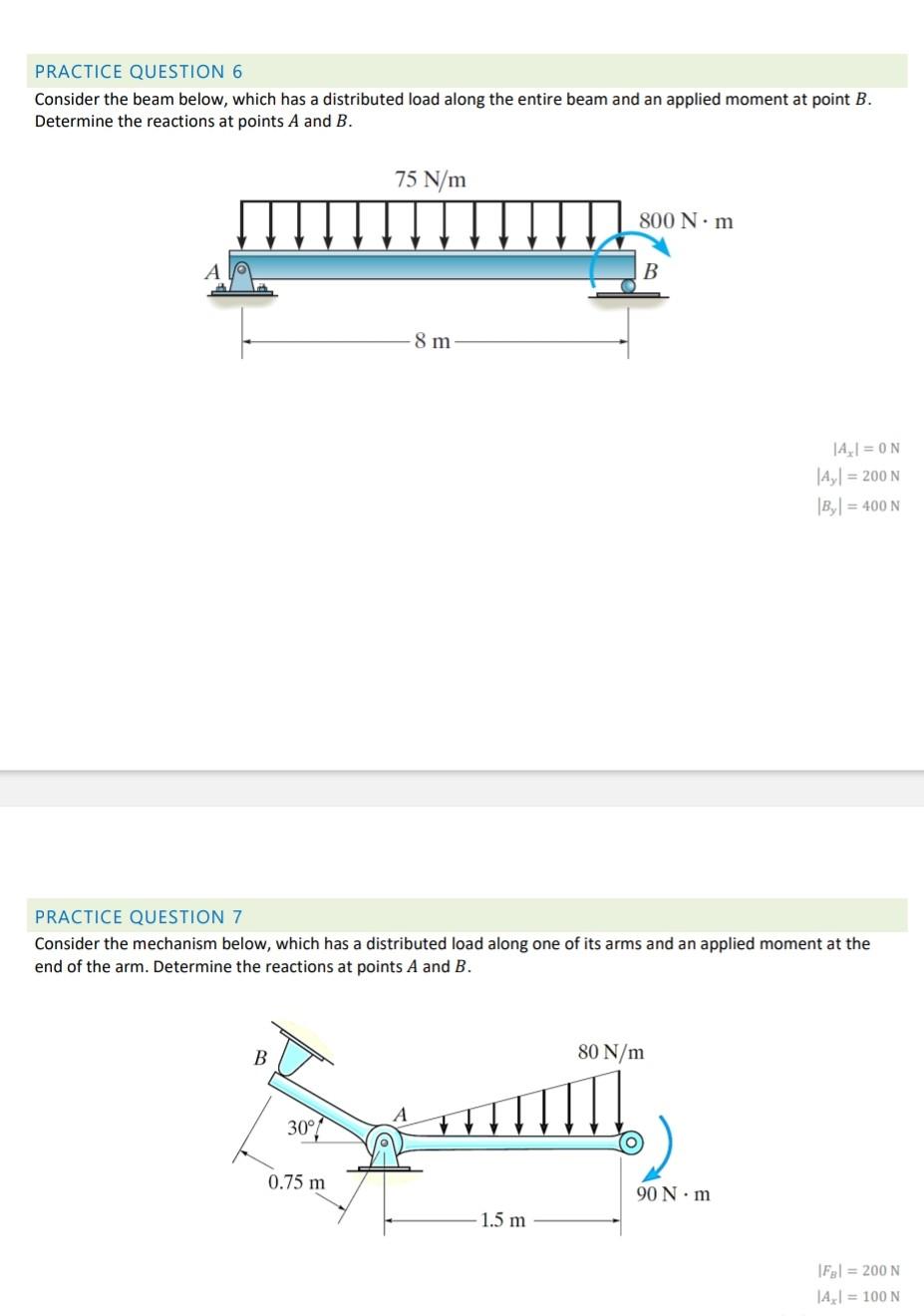

Consider the beam below, which has a distributed load along the entire beam and an applied moment at point B. Determine the reactions at points A and B. Ax=0NAy=200NBy=400N PRACTICE QUESTION 7 Consider the mechanism below, which has a distributed load along one of its arms and an applied moment at the end of the arm. Determine the reactions at points A and B. FB=200NAx=100N

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
