Question: Consider the beam shown in ( Eigure 1 ) . The beam is made from steel, E = 2 9 ( 1 0 3 )

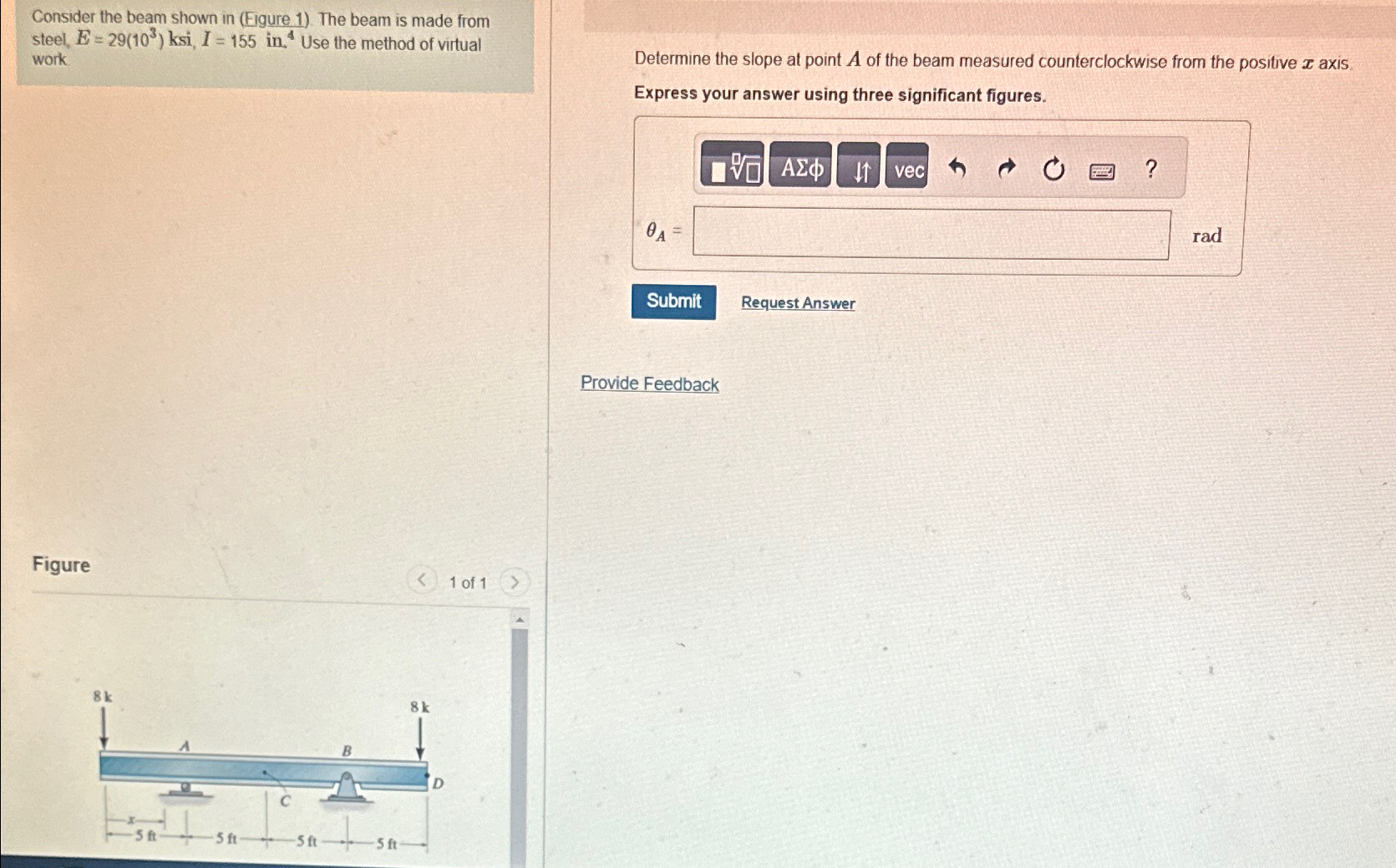

Consider the beam shown in (Eigure 1). The beam is made from steel, E=29(103)ksi,I=155 in.?4 Use the method of virtual work work
Determine the slope at point A of the beam measured counterclockwise from the positive x axis
Express your answer using three significant figures.
A=
rad
Figure
1 of 1
Provide Feedback
Consider the beam shown in ( Eigure 1 ) . The

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
