Question: Consider the beam shown in ( Figure 1 ) . Assume the supports at A and D are fixed and B and C are rollers.

Consider the beam shown in

(

Figure

1) .

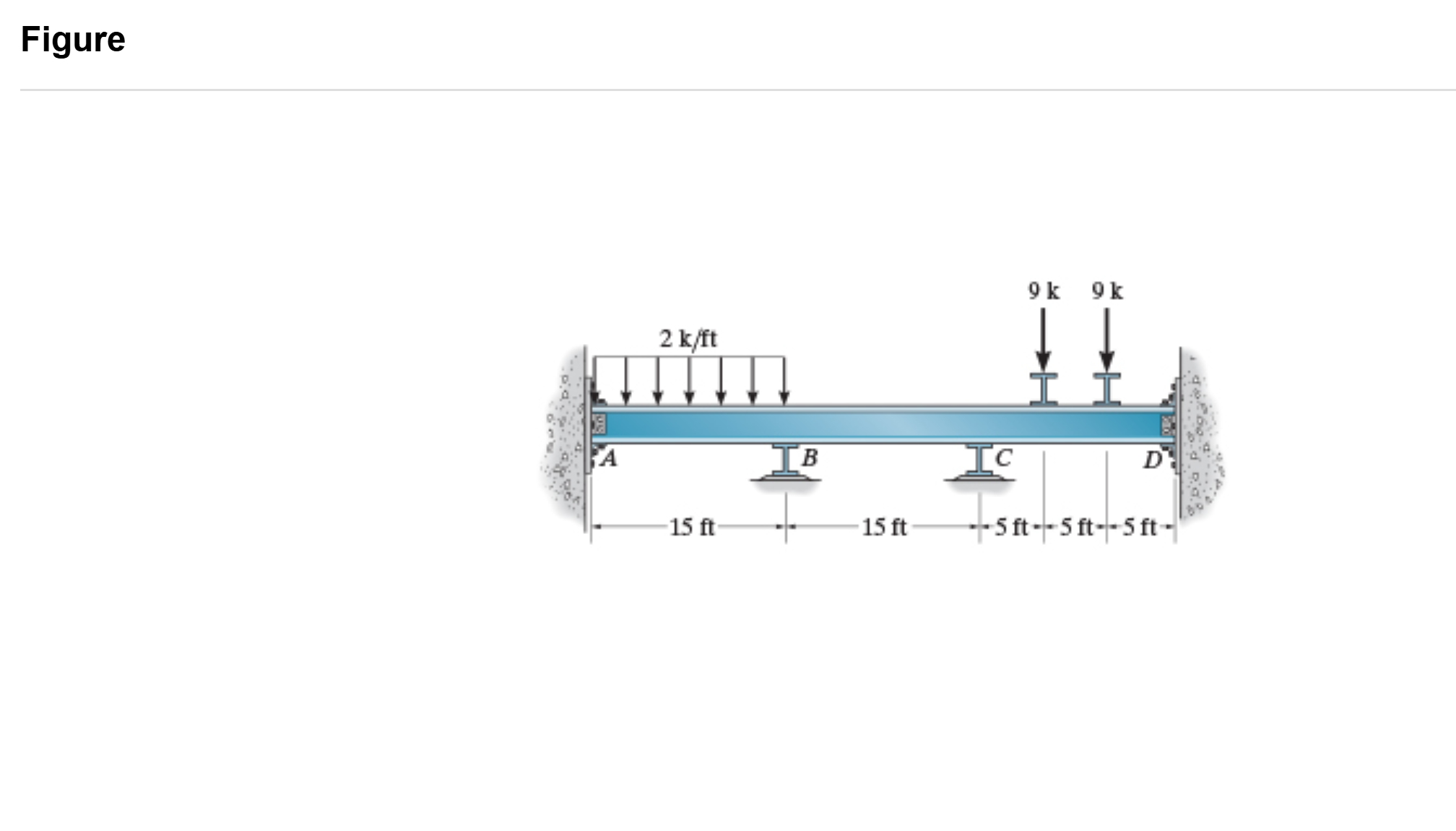

Assume the supports at A and D are fixed and B and C are rollers. EI is constant. Determine the internal end moment MAB acting on span AB at A measured clockwise. Determine the internal end moment MBA acting on span AB at B measured clockwise. Determine the internal end moment MBC acting on span BC at B measured clockwise. Determine the internal end moment MCB acting on span BC at C measured clockwise. Determine the internal end moment MCD acting on span CD at C measured clockwise. Determine the internal end moment MDC acting on span CD at D measured clockwise. Draw the Bending Moment Diagram.

Consider the beam shown in ( Figure 1 ) . Assume

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
