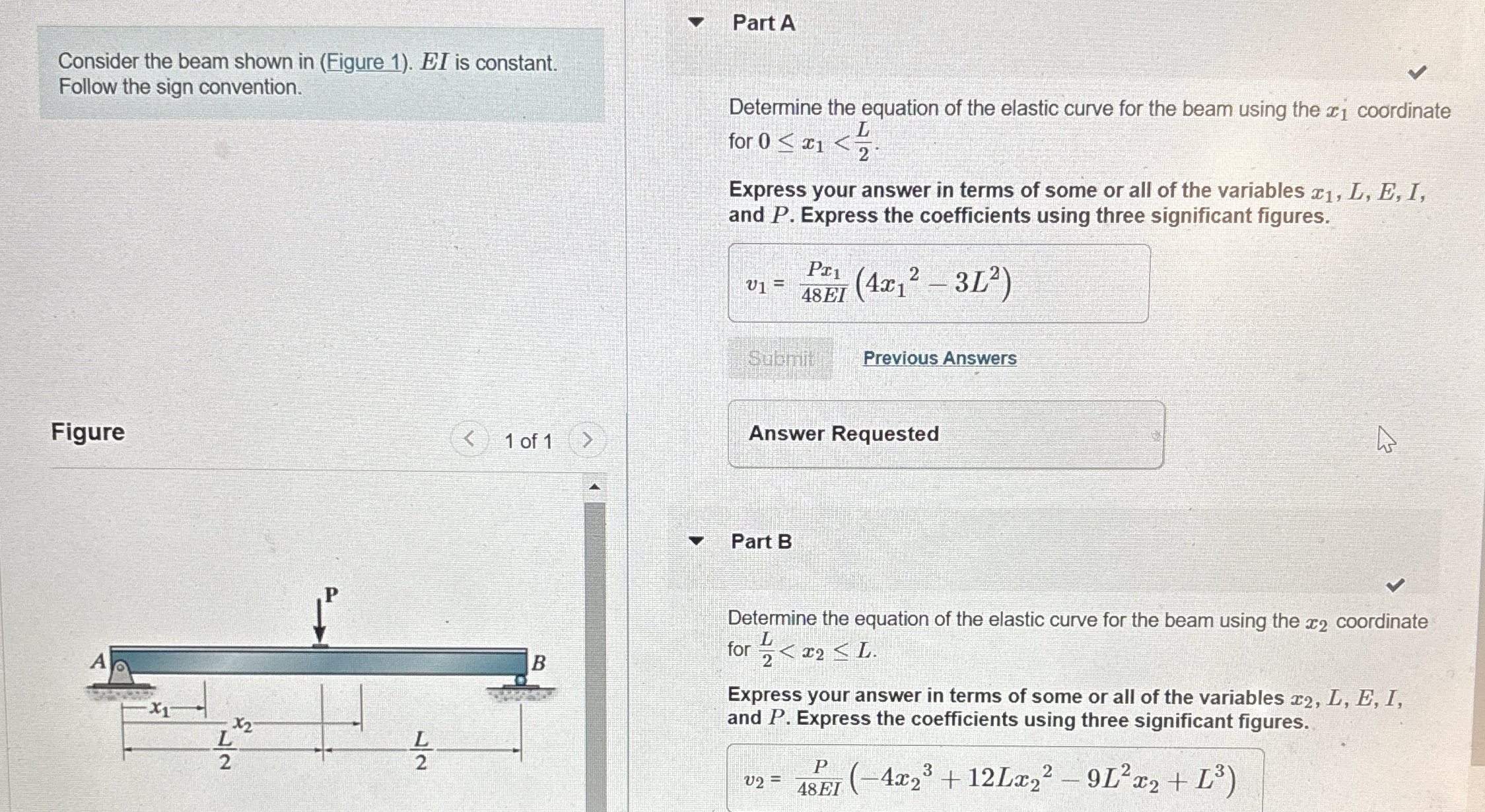

Question: Consider the beam shown in ( Figure 1 ) . EI is constant. Follow the sign convention. Figure 1 of 1 Part B Determine the

Consider the beam shown in (Figure 1). EI is constant. Follow the sign convention.
Figure
1 of 1
Part B
Determine the equation of the elastic curve for the beam using the x2 coordinate for x2,L,E,IPv2=P48EI(-4x23+12Lx22-9L2x2+L3)L2.
Express your answer in terms of some or all of the variables x2,L,E,I, and P. Express the coefficients using three significant figures.
v2=P48EI(-4x23+12Lx22-9L2x2+L3)
Consider the beam shown in ( Figure 1 ) . EI is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
