Question: Consider the beam shown in ( Figure 1 ) . E I is constant. Assume that E I is in k N * m 2

Consider the beam shown in (Figure 1).EI is constant. Assume that EI is in kN*m2 Suppose that P=3.5kN. Solve this problem using the moment-area theorems.
Part A
consider the construction sho...
Mathway | Algebra Problem S...
Determine the displacement at C.
Express your answer in kilonewtons multiplied by meter cubed and divided by EI to three significant figures. Enter a positive value if the displacement is upward and a negative value if the displacement is downward.
vC=,kN*m3EI
Part B
Determine the slope at B.
Express your answer in kilonewtons multiplied by meter squared and divided by EI to three significant figures. Enter a positive value for a counterclockwise slope and a negative value for a clockwise slope.

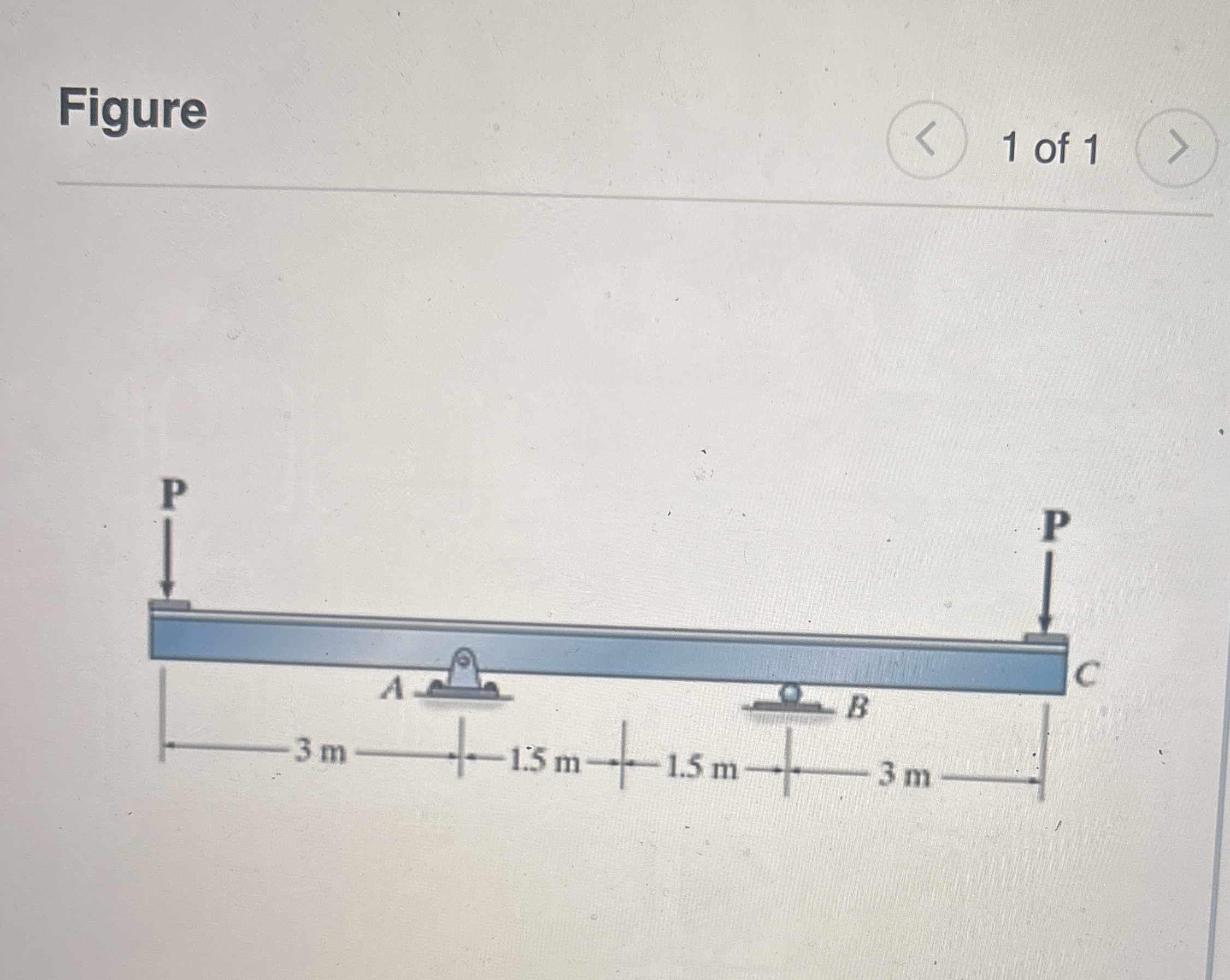

Figure
1 of 1
Consider the beam shown in ( Figure 1 ) . E I is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
