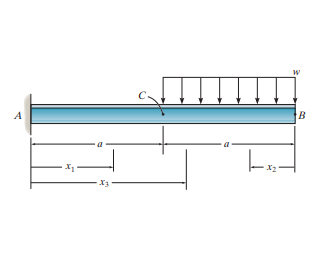

Question: Consider the beam shown in ( Figure 1 ) . EI is constant. Part A: Determine the equations of the elastic curve using the x

Consider the beam shown in (Figure 1). EI is constant. Part A:
Determine the equations of the elastic curve using the x1 and x2coordinates.
Express your answers separated by a comma in terms of some or all of the variables x1, x2, a, w, E, and I. Activate to select the appropriates symbol from the following choices.
v1(x1), v2(x2)= Part B:
What is the slope at C and displacement at B?
Express your answers separated by a comma in terms of some or all of the variables a, w, E, and I.
Consider the beam shown in ( Figure 1 ) . EI is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
