Consider the beam shown in $($Figure $1).$ Follow the sign Consider the beam shown in $($Figure $1).$ Follow the sign

Draw the shear diagram for the beam.

Click on "add vertical line off" to add discontinuity lines. Then click on "add segment" button to add functions

between the lines.

Note $-$ You should not draw an "extra" vertical line at the point where the shear curve passes the $x-$axis.

$1$

No elements selected

Add discontinuity lines and select segments to add to the canvas. Consider the beam shown in $($Figure $1).$ Follow the sign

convention.

Draw the moment diagram for the beam.

Click on "add vertical line off" to add discontinuity lines. Then click on "add segment" button to add functions

between the lines.

Note $1-$ Draw a vertical line to denote local maximum or minimum.

Note $2-$ The curve you choose from the drop$-$down is only a pictorial representation of a real quadratic$/$cubic curve.

The equation of this curve is not mathematically equivalent to the correct answer. Consequently, slopes at

discontinuities and intercepts with the x$-$axis $($if any$)$ are not accurate.

No elements selected

Figure

convention.

Figure

$1$ of $1$

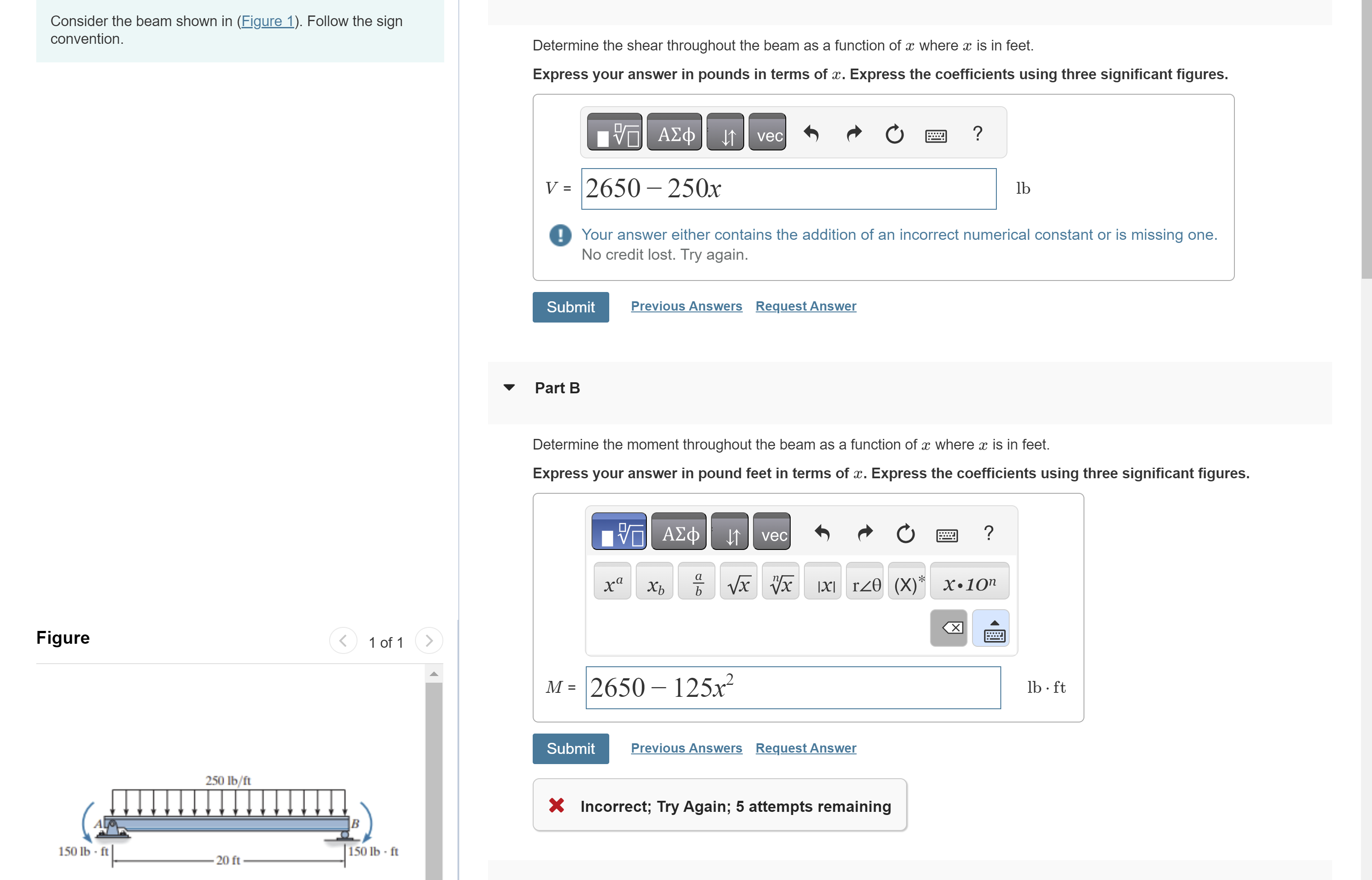

Determine the shear throughout the beam as a function of $x$ where $x$ is in feet.

Express your answer in pounds in terms of $x.$ Express the coefficients using three significant figures.

$V=,lb$

Your answer either contains the addition of an incorrect numerical constant or is missing one.

No credit lost. Try again.

Previous Answers

Request Answer

Part B

Determine the moment throughout the beam as a function of $x$ where $x$ is in feet.

Express your answer in pound feet in terms of $x.$ Express the coefficients using three significant figures.

$M$:

$b*ft$

Incorrect; Try Again; $5$ attempts remaining
