Question: Determine the normal force at point D . The beam is supported at A and B as shown in ( Figure 1 ) . Suppose

Determine the normal force at point D.

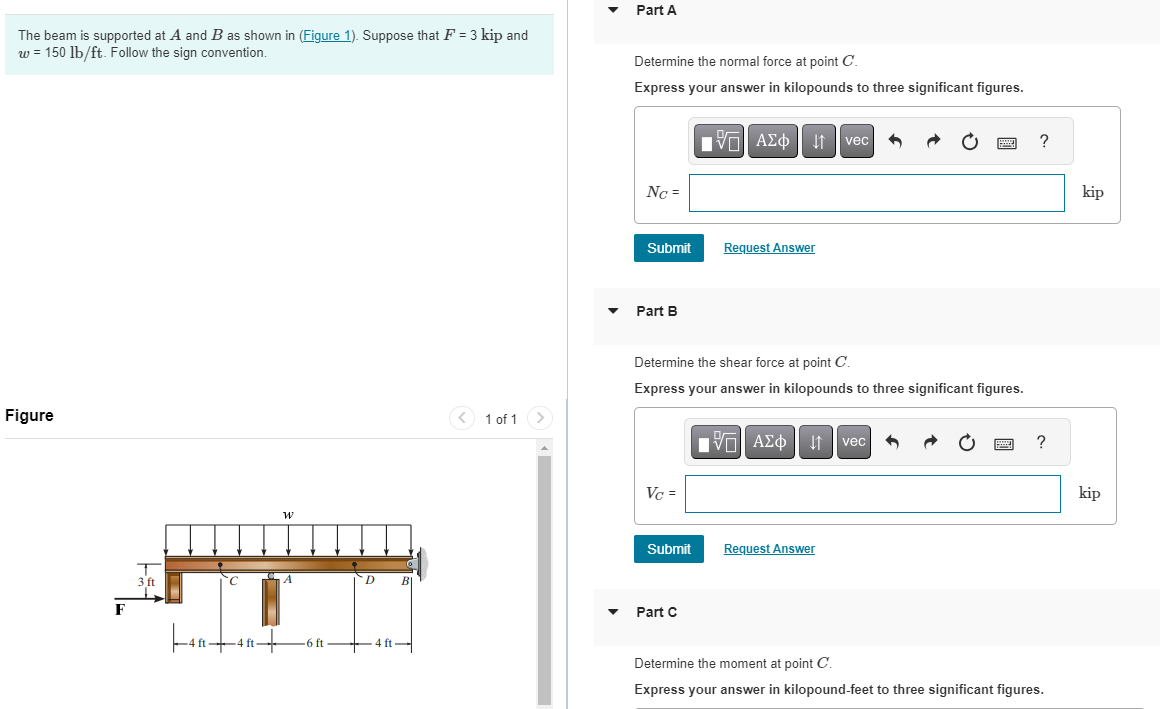

The beam is supported at A and B as shown in (Figure 1). Suppose that F=3kip and
w=150lbft. Follow the sign convention.
Express your answer in kilopounds to three significant figures.
ND=
Part E
Determine the shear force at point D.
Express your answer in kilopounds to three significant figures.
Figure
Request Answer
Part F
Determine the moment at point D.
Express your answer in kilopound-feet to three significant figures.
MD=, kip *ftThe beam is supported at A and B as shown in (Figure 1). Suppose that F=3kip and
w=150lbft. Follow the sign convention.
Figure
Part A
Determine the normal force at point C.
Express your answer in kilopounds to three significant figures.
Part B
Determine the shear force at point C.
Express your answer in kilopounds to three significant figures.
VC=, kip
Part C
Determine the moment at point C.
Express your answer in kilopound-feet to three significant figures.
Determine the normal force at point D . The beam

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

User Settings Purchase Options Consider the beam in ( Figure 1 ) . Point D is just to the right of the load F = 3 kip. Follow the sign conventions. Determine the moment at point C . Express your...

Q:

Determine the normal force at point D of the two - member frame. Consider the two - member frame shown in ( Figure 1 ) . Neglect the thickness of the member. Suppose that F = 5 5 0 N . Follow the...

Q:

Consider the beam shown in ( Figure 1 ) . Take P = 1 kip and w = 1 . 9 k i p f t . Point E is just to the right of the 1 - kip load. Follow the sign convention. Part A Determine the normal force at...

Q:

Hand written solution required Consider the beam shown in [E gute 1) Take Part A w/ = 12 kip/ft Follow the sign convention Determine the normal force al point c Express your answer in kilopounds to...

Q:

der the beam shown in ( Figure 1 ) . Take P = 4 kip and w = 1 . 3 k i p f t . Point E is just to the right of kip load. Follow the sign convention. Part B Determine the shear force at point D ....

Q:

Consider the beam shown in ( Figure 1 ) . Suppose that the Part D Determine the normal force at point D . Express your answer in kilopounds to three significant figures. N D = , kip Request Answer...

Q:

The beam is supported at A and B as shown in ( Figure 1 ) . Suppose that F = 6 . 5 kip and w = 5 0 0 l b f t . Follow the sign convention. Figure Part C Determine the moment at point C . Express your...

Q:

Consider the beam shown in ( Figure 1 ) . Take P = 5 kip and w = 1 . 7 k i p f t . Point E is just to the right of the 5 - kip load. Follow the sign convention. Figure 1 of 1 1 of 1 Part A Determine...

Q:

Consider the beam shown in ( Figure 1 ) . Suppose that the distributed load w = 4 0 0 l b f t . Follow the sign convention. Follow the sign convention. Part A Determine the normal force at point C ....

Q:

help me solve Consider the beam shown in ( Figure 1 ) . Take P = 2 kip and w = 1 . 7 k i p f t . Point E is just to the right of the 2 - kip load. Follow the sign convention. Figure Part A Determine...
