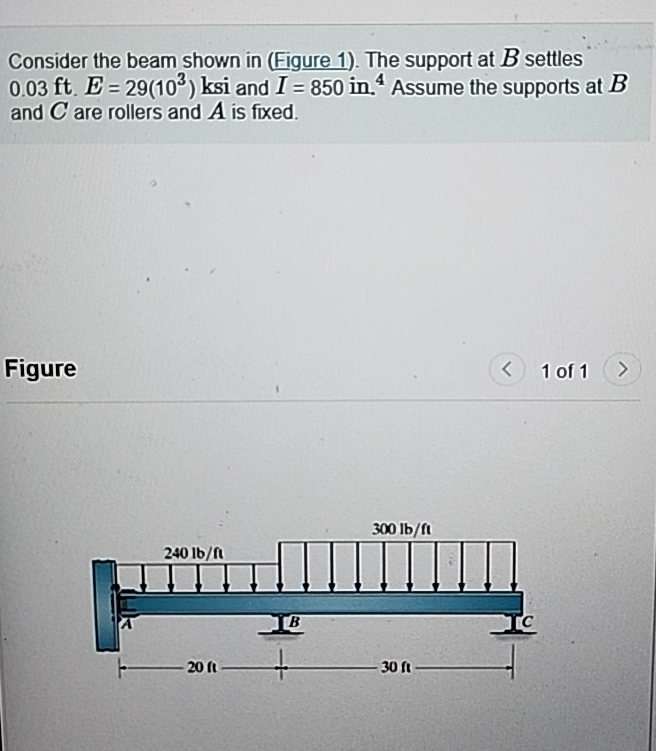

Question: Consider the beam shown in ( Figure 1 ) . The support at B settles 0 . 0 3 f t . E = 2

Consider the beam shown in (Figure 1). The support at B settles 0.03ft.E=29(103)ksi and I=850 in.?4 Assume the supports at B and C are rollers and A is fixed.
Solve for Mab, Mba, Mbc..... Will upvote if correct
Consider the beam shown in ( Figure 1 ) . The

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
