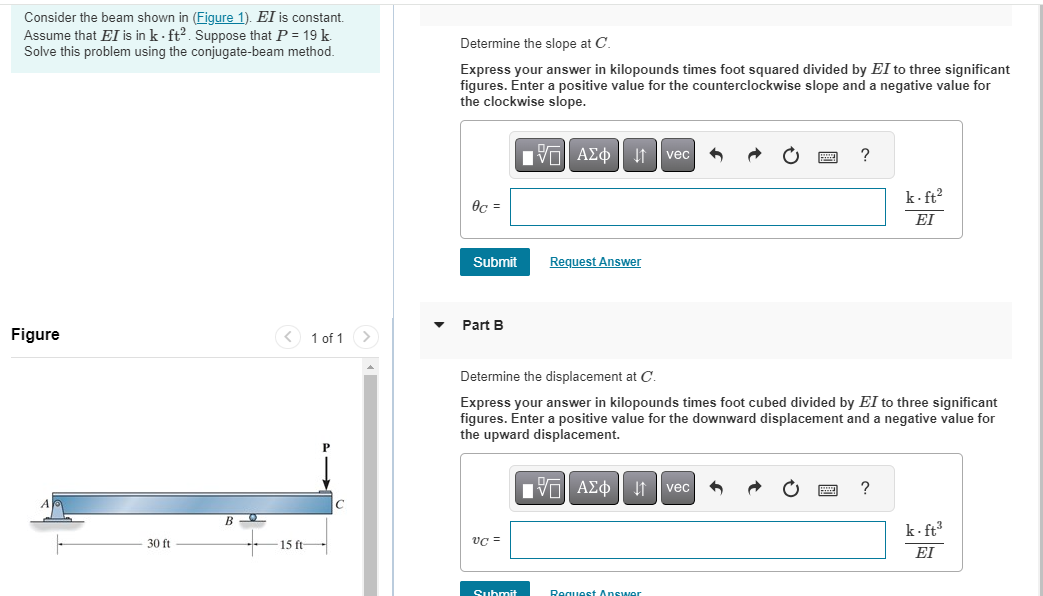

Question: Consider the beam shown in ( Figure 1 ) . E I is constant. Assume that E I is in k * f t 2

Consider the beam shown in (Figure 1).EI is constant.
Assume that EI is in k*ft2. Suppose that P=19k.
Solve this problem using the conjugate-beam method.
Figure
Determine the slope at C.
Express your answer in kilopounds times foot squared divided by EI to three significant
figures. Enter a positive value for the counterclockwise slope and a negative value for
the clockwise slope.
Part B
Determine the displacement at C.
Express your answer in kilopounds times foot cubed divided by EI to three significant
figures. Enter a positive value for the downward displacement and a negative value for
the upward displacement.
vC=,k*ft3EI
Consider the beam shown in ( Figure 1 ) . E I is
