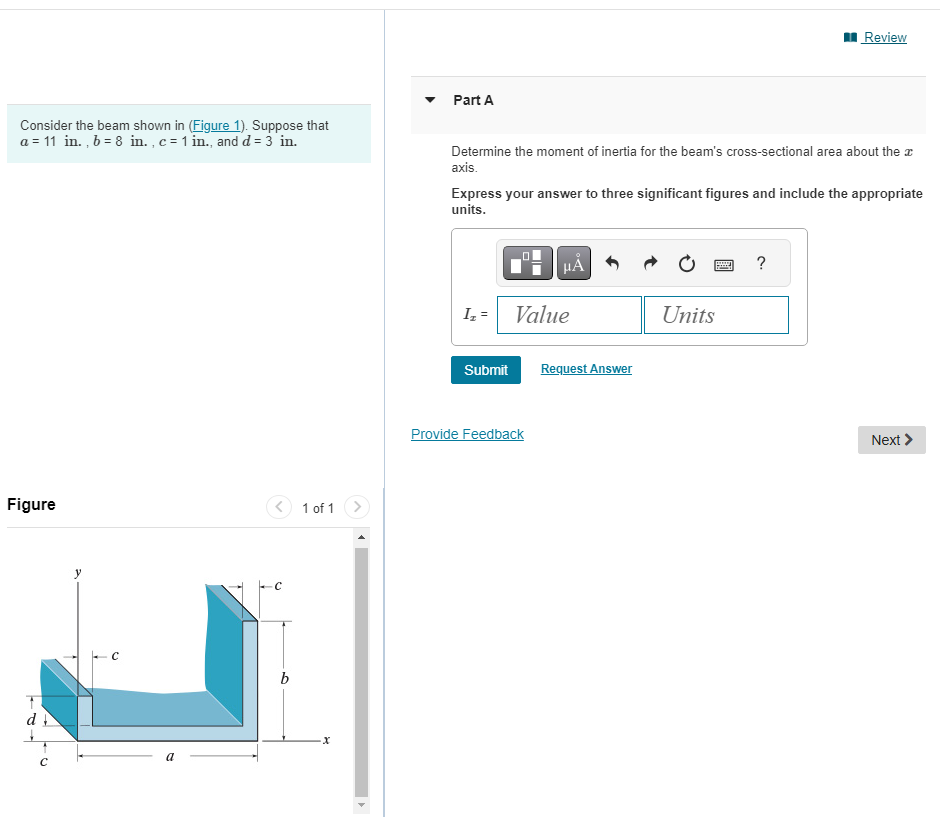

Consider the beam shown in $($Figure $1).$ Suppose that aa $=11$ in$.$in$.,$ bb $=8$ in$.$in$.,$ cc $=1$ in$.$in$.,$ and dd $=3$ in$.$in$.$

Figure

$1$ of $1$

Part A

Determine the moment of inertia for the beam's cross$-$sectional area about the xx axis.

Express your answer to three significant figures and include the appropriate units.

Activate to select the appropriates template from the following choices. Operate up and down arrow for selection and press enter to choose the input value typeActivate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

IxIx $=$

Consider the beam shown in $($Figure $1).$ Suppose that $\backslash ($ a$=11\backslash )$ in$.,\backslash ($ b$=8\backslash )$ in$.,\backslash ($ c$=1\backslash )$ in$.,$ and $\backslash ($ d$=3\backslash )$ in$.$

Part A

Determine the moment of inertia for the beam's cross$-$sectional area about the $\backslash ($ x $\backslash )$ axis.

Express your answer to three significant figures and include the appropriate units.

Request Answer

Provide Feedback

Figure
