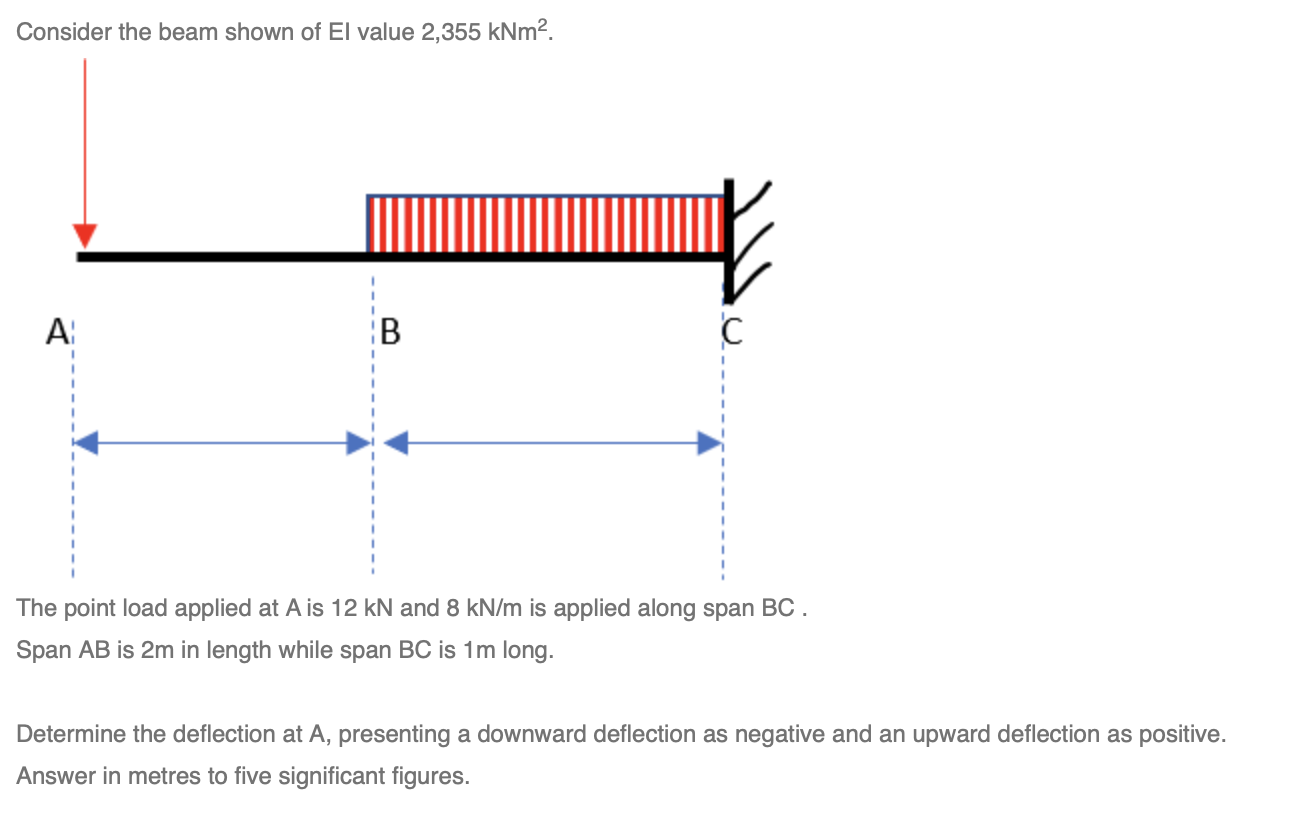

Question: Consider the beam shown of El value ( 2 , 3 5 5 mathrm { kNm } ^ { 2 } )

Consider the beam shown of El value \(2,355\mathrm{kNm}^{2}\).
The point load applied at A is 12 kN and \(8\mathrm{kN}/\mathrm{m}\) is applied along span BC .
Span \( A B \) is \(2 m \) in length while span \( B C \) is 1 m long.
Determine the deflection at A, presenting a downward deflection as negative and an upward deflection as positive. Answer in metres to five significant figures.
Consider the beam shown of El value \ ( 2 , 3 5 5
