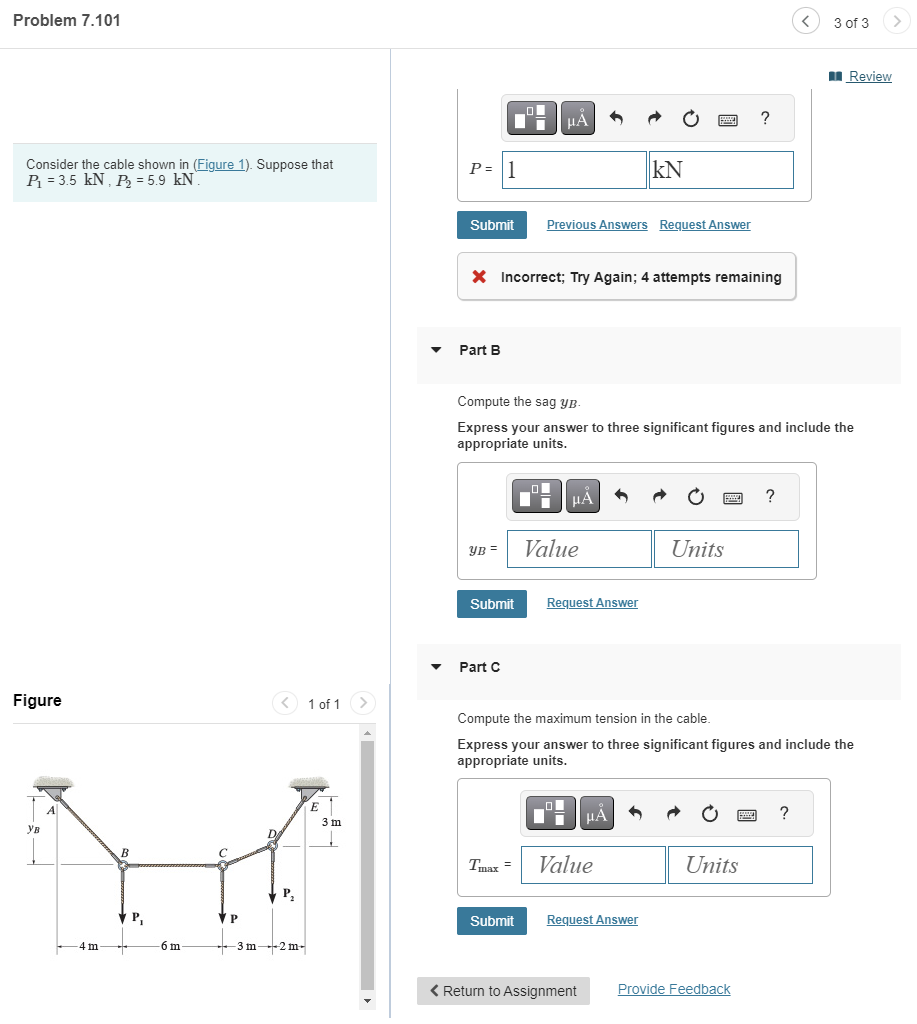

Question: Consider the cable shown in ( Figure 1 ) . Suppose that P 1 = 3 . 5 k N , P 2 = 5

Consider the cable shown in (Figure 1). Suppose that
P1=3.5kN,P2=5.9kN.
P=
Previous Answers
Incorrect; Try Again; 4 attempts remaining
Part B
Compute the sag yB.
Express your answer to three significant figures and include the
appropriate units.
yB=
Request Answer
Compute the maximum tension in the cable.
Express your answer to three significant figures and include the
appropriate units.
Tmax=
Consider the cable shown in ( Figure 1 ) .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
