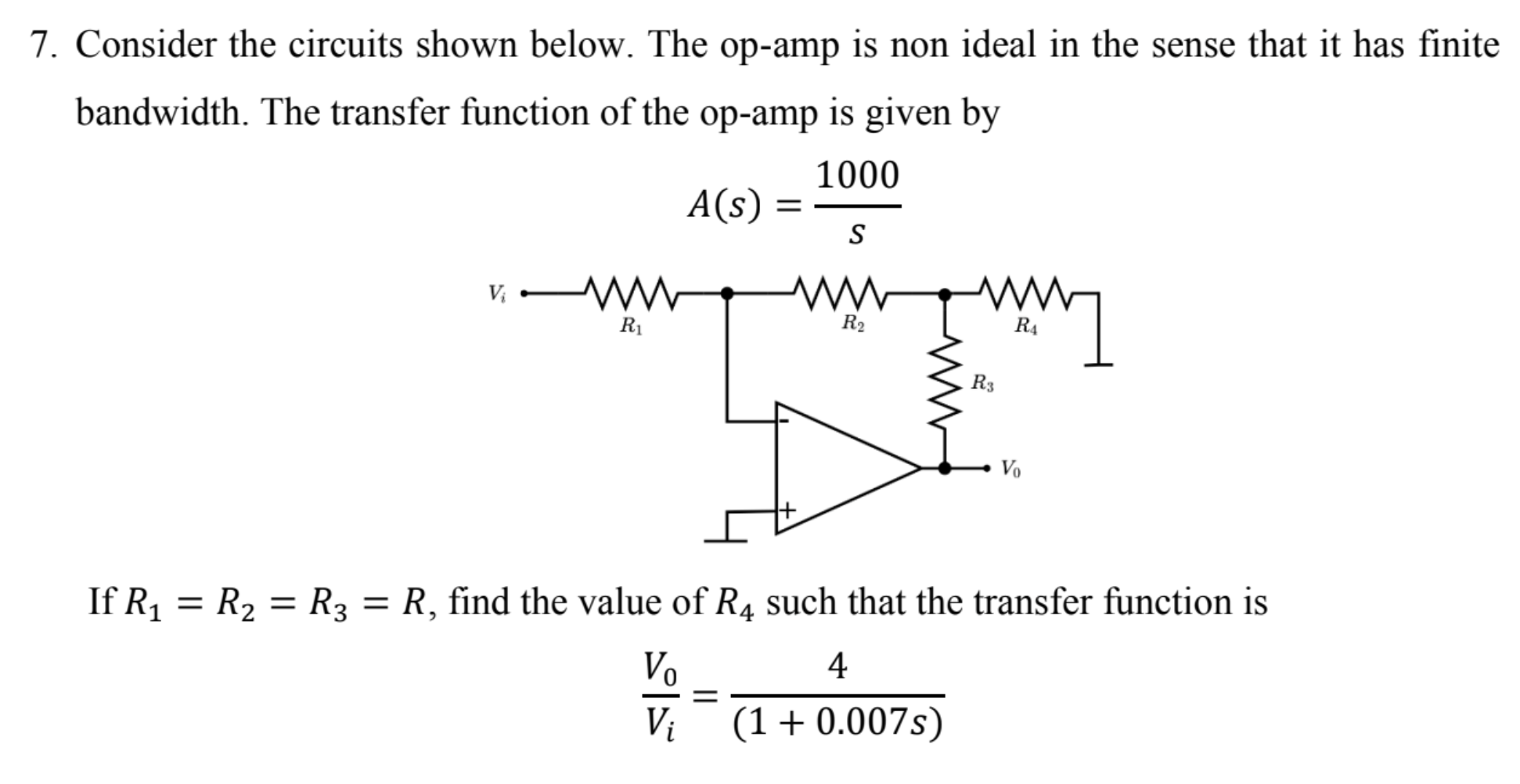

Question: Consider the circuits shown below. The op - amp is non ideal in the sense that it has finite bandwidth. The transfer function of the

Consider the circuits shown below. The op-amp is non ideal in the sense that it has finite
bandwidth. The transfer function of the op-amp is given by
A(s)=1000_()
If R_(1)=R_(2)=R_(3)=R, find the value of R_(4) such that the transfer function is
(V_(0))/(V_(i))=(4)/((1+0.007s))
Consider the circuits shown below. The op - amp

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
