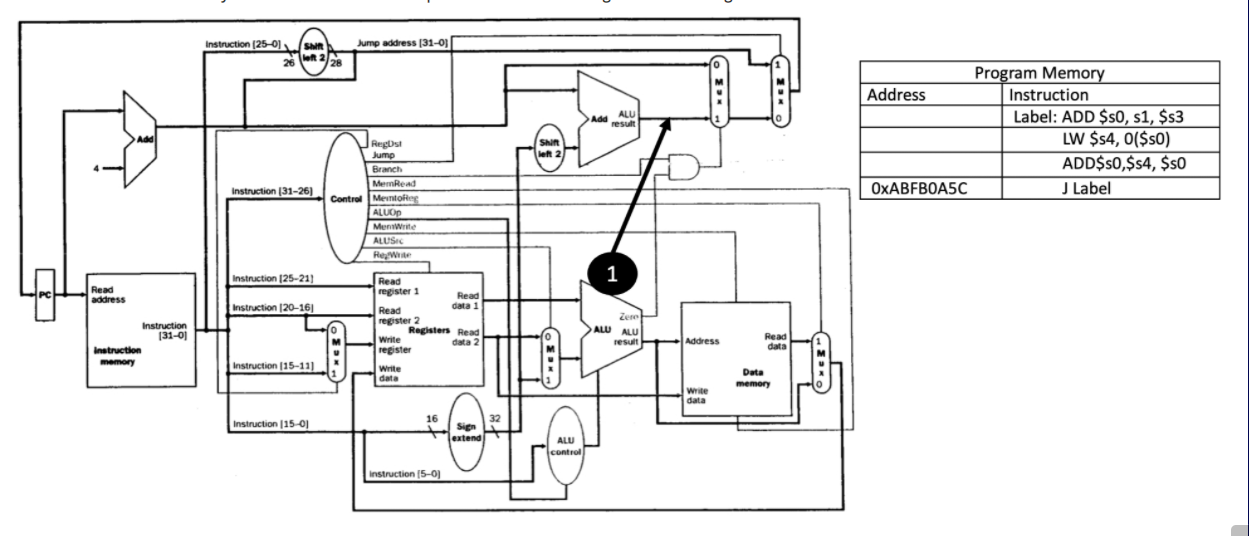

Consider the data path below for a single cycle 32-bits MIPS processor

Assume that we are executing the following instruction

J Label

What is the value of the element pointed by arrow number 1 by in hexadecimal?

Note that the instruction memory content needed to solve this problem is found on the right of the below figure.

Select one:

a. 0xABFE14B4

b. 0xABFE14B0

c. 0xABF3AED4

d. 0xABF3AED0

e. 0xABFB0A54

f. None of the options

g. 0xABF80010

h. 0xABF8000C

i. 0xABF80014

Jump address (31-03 Instruction (25-01 SNR 26 LR 228 28 ALU Add result Program Memory Address Instruction Label: ADD $so, s1, $s3 LW $54, 0($50) ADD$50,$s4, $50 OXABFBOA5C J Label SHIR lett 2 Instruction (31-26) Regts Jump Branch MemRead Control Metofte ALUP Men Write ALUSIC Rewrite Instruction 125-21) 1 Read address Instruction 120-16) Zene Read register 1 Read Read data 1 register 2 Registers Read Write data 2 register Write data Instruction (31-01 Instruction memory ALU ALU result Address Read data Instruction (15-11) Data memory write data Instruction 15-01 16 + extend Sie ALU control instruction 15-01
