Question: Consider the data path below for a single cycle 3 2 bits MIPS processor Assume that we are executing the following instruction ADD $t 5

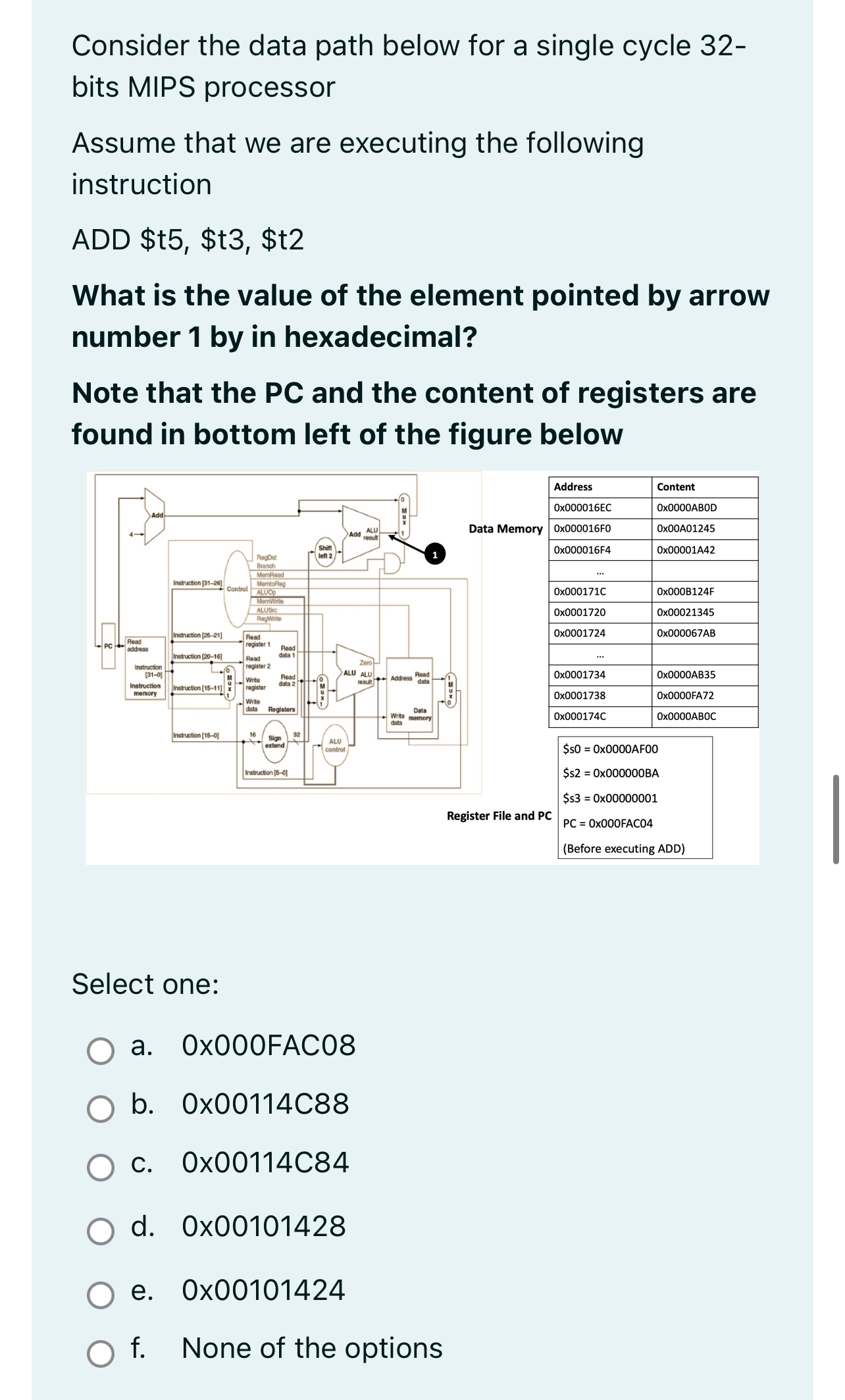

Consider the data path below for a single cycle 32bits MIPS processor
Assume that we are executing the following instruction
ADD $t5, $t3, $t2
What is the value of the element pointed by arrow number 1 by in hexadecimal?
Note that the PC and the content of registers are found in bottom left of the figure below
\table[[Memory,Address,Content],[0x000016EC,Ox0000ABOD],[0x000016F0,0x00A01245],[0x000016F4,0x00001A42],[...,],[0x000171C,0x000B124F],[0x0001720,0x00021345],[0x0001724,0x000067AB],[...,],[0x0001734,0x0000AB35],[0x0001738,0x0000FA72],[0x000174C,0x0000ABOC],[,\table[[$s0=00000AF00
$s2=0000000BA
$s3=000000001
PC=0000FAC04
