Question: Consider the figures below Indicate in the table below if the instruction memory, data memory, or the immediate generation (sign-extend) unit are active for the

Consider the figures below

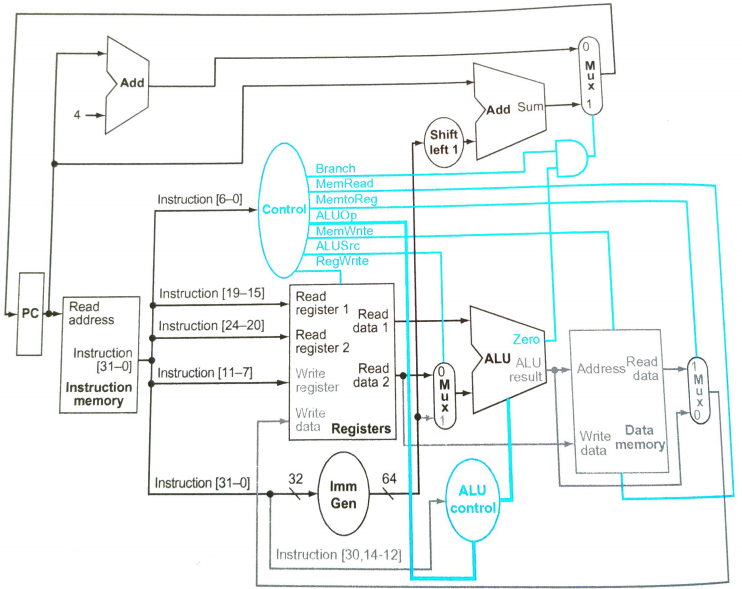

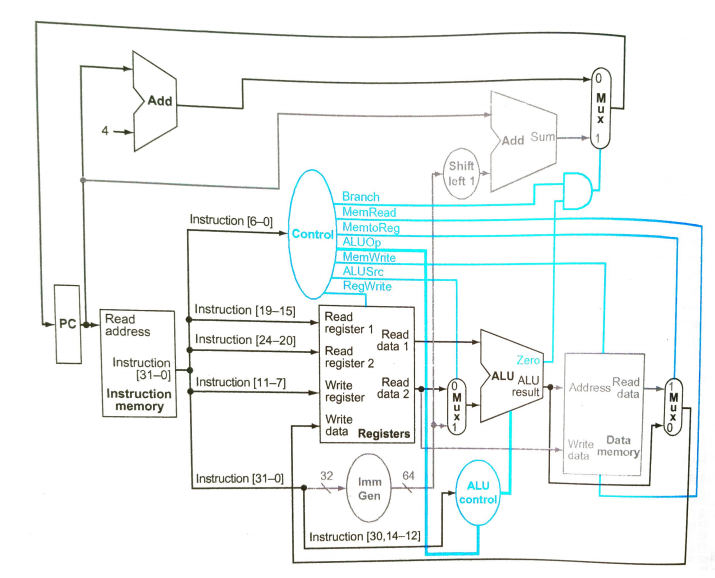

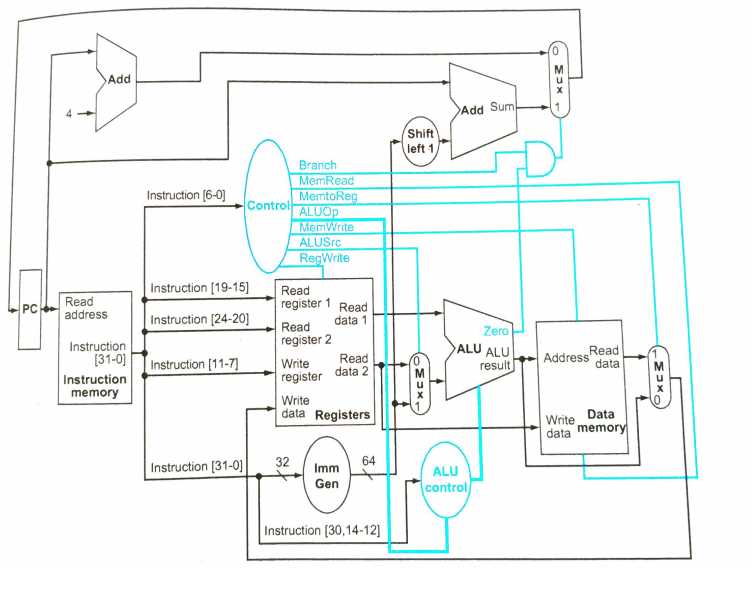

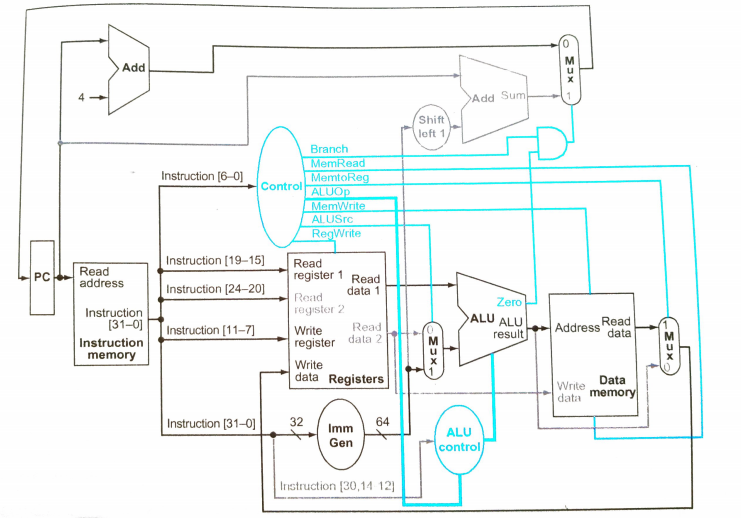

Indicate in the table below if the instruction memory, data memory, or the immediate generation (sign-extend) unit are active for the given instructions. If the element is active for the given instruction, put an X in the corresponding field. If not, leave the field blank.

Consider the figures below Indicate in the table below if the instruction

_________________________________________________________________________________

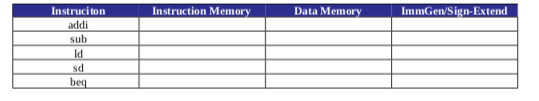

Instruciton addi Instruction Memory Data Memory ImmGen/Sign-Extend sd beg

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Indicate in the table below if the instruction memory, data memory, or the immediate generation (sign-extend) unit are active for the given instructions. If the element is active for the given...
