Question: Consider the following Atmel AVR Assembly Language code: LDI R 1 6 , $ D 4 LDI R 1 7 , $ E 7 ADD

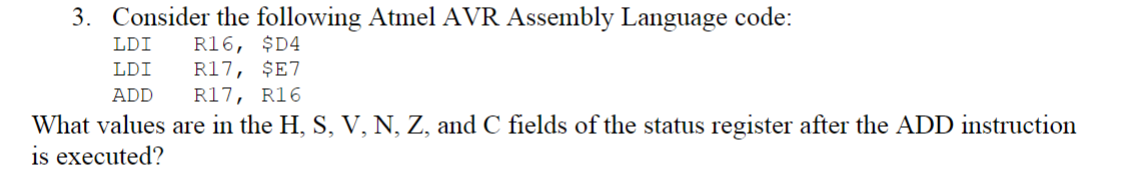

Consider the following Atmel AVR Assembly Language code:
LDI R16, $D4
LDI R17, $E7
ADD R17,R16
What values are in the H,S,V,N,Z, and C fields of the status register after the ADD instruction
is executed?
Consider the following Atmel AVR Assembly

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
