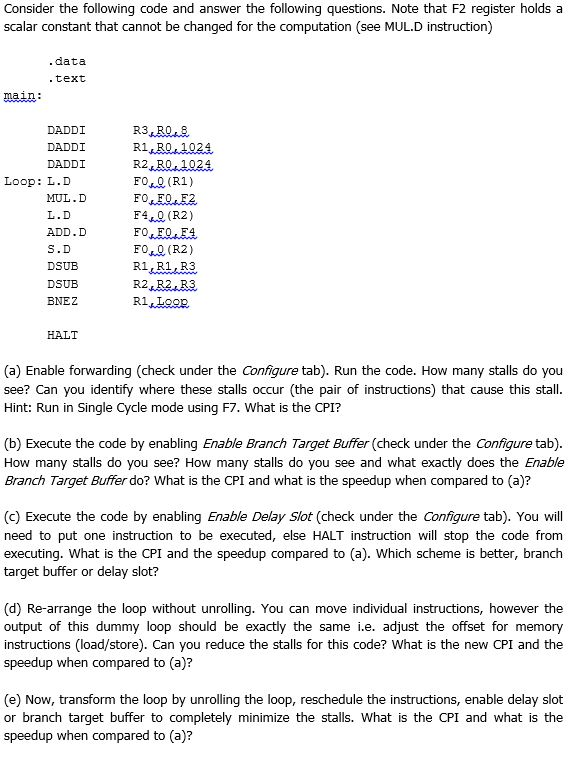

Consider the following code and answer the following questions. Note that F2 register holds a scalar constant that cannot be changed for the computation (see MUL.D instruction)

.data

.text

main:

DADDI R3,R0,8

DADDI R1,R0,1024

DADDI R2,R0,1024

Loop: L.D F0,0(R1)

MUL.D F0,F0,F2

L.D F4,0(R2)

ADD.D F0,F0,F4

S.D F0,0(R2)

DSUB R1,R1,R3

DSUB R2,R2,R3

BNEZ R1,Loop

HALT

(a) Enable forwarding (check under the Configure tab). Run the code. How many stalls do you see? Can you identify where these stalls occur (the pair of instructions) that cause this stall. Hint: Run in Single Cycle mode using F7. What is the CPI?

(b) Execute the code by enabling Enable Branch Target Buffer (check under the Configure tab). How many stalls do you see? How many stalls do you see and what exactly does the Enable Branch Target Buffer do? What is the CPI and what is the speedup when compared to (a)?

(c) Execute the code by enabling Enable Delay Slot (check under the Configure tab). You will need to put one instruction to be executed, else HALT instruction will stop the code from executing. What is the CPI and the speedup compared to (a). Which scheme is better, branch target buffer or delay slot?

(d) Re-arrange the loop without unrolling. You can move individual instructions, however the output of this dummy loop should be exactly the same i.e. adjust the offset for memory instructions (load/store). Can you reduce the stalls for this code? What is the new CPI and the speedup when compared to (a)?

(e) Now, transform the loop by unrolling the loop, reschedule the instructions, enable delay slot or branch target buffer to completely minimize the stalls. What is the CPI and what is the speedup when compared to (a)?
