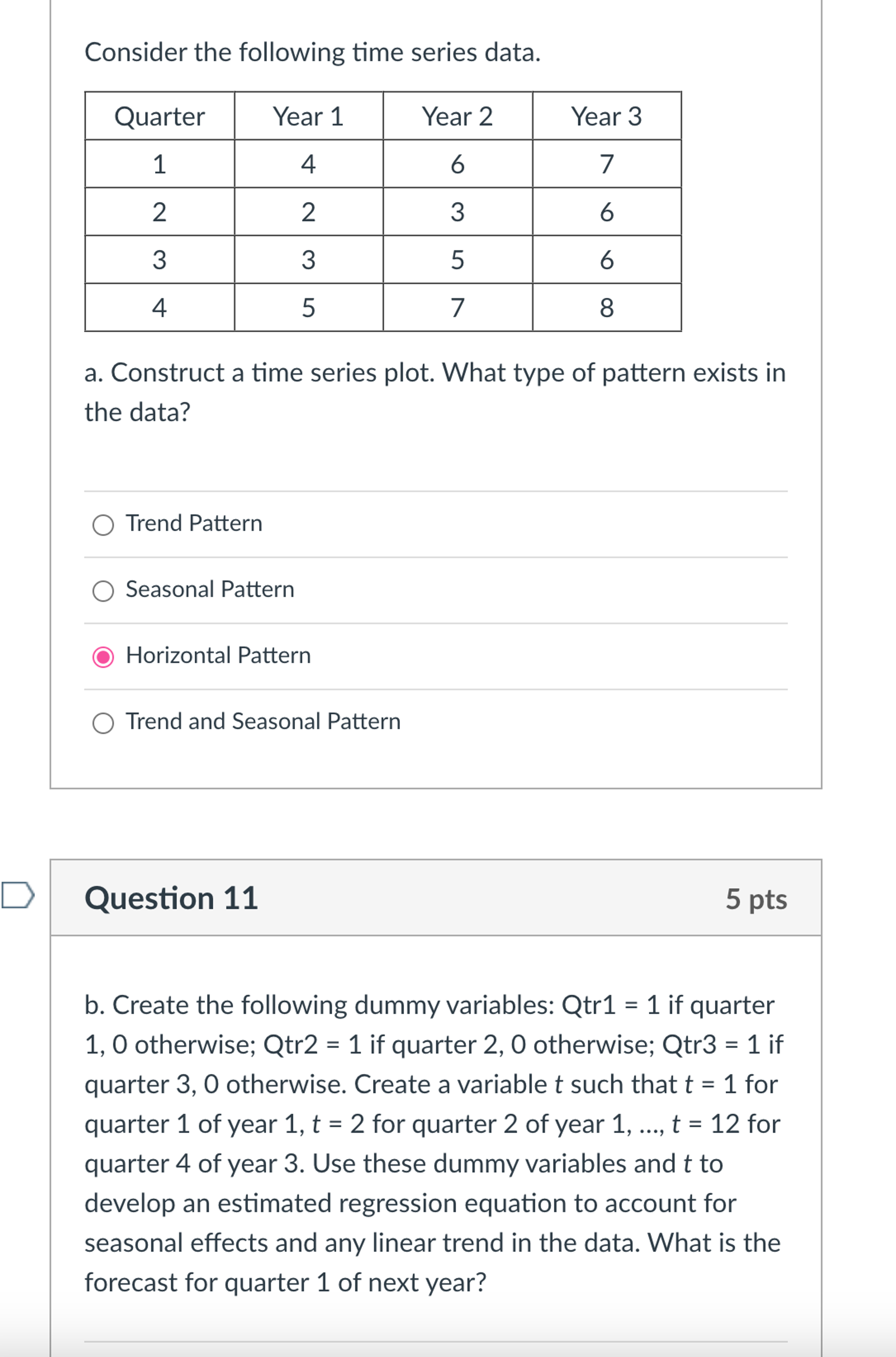

Consider the following time series data.

a$.$ Construct a time series plot. What type of pattern exists in

the data?

Trend Pattern

Seasonal Pattern

Horizontal Pattern

Trend and Seasonal Pattern

Question $11$

$5$ pts

b$.$ Create the following dummy variables: $Qtr1=1$ if quarter

$1,0$ otherwise; $Qtr2=1$ if quarter $2,0$ otherwise; $Qtr3=1$ if

quarter $3,0$ otherwise. Create a variable $t$ such that $t=1$ for

quarter $1$ of year $1,t=2$ for quarter $2$ of year $1,$dots,$t=12$ for

quarter $4$ of year $3.$ Use these dummy variables and $t$ to

develop an estimated regression equation to account for

seasonal effects and any linear trend in the data. What is the

forecast for quarter $1$ of next year?c$.$ What is the forecast for quarter $2$ of next year?

Group of answer choices

$7\mathrm{.}45$

$6\mathrm{.}91$

$6\mathrm{.}41$

$7\mathrm{.}23$

Flag question: Question $13$

Question $135$ pts

d$.$ What is the forecast for quarter $3$ of next year?

Group of answer choices

$8\mathrm{.}37$

$7\mathrm{.}92$

$8\mathrm{.}25$

$7\mathrm{.}62$

e$.$ What is the foercast for quarter $4$ of next year?

Group of answer choices

$10\mathrm{.}38$

$9\mathrm{.}92$

$9\mathrm{.}62$

$10\mathrm{.}19$
